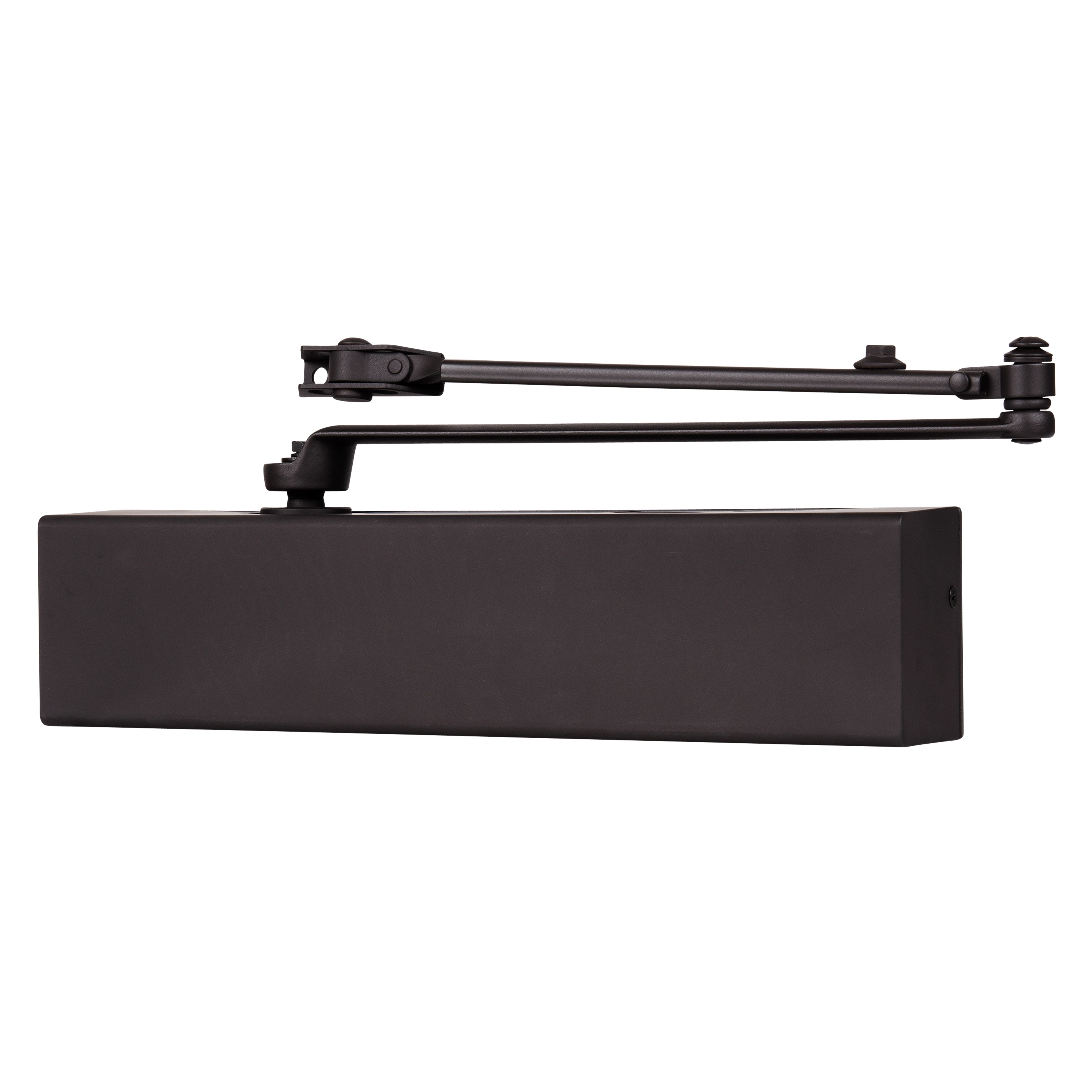

Heavy Duty All-In-One Commercial Door Closer

SKU UH4062

  • Features - This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety.
  • Measurements - For exterior doors up to 250 lbs. and 48” wide and interior doors up to 250 lbs. and 60” wide
  • Specifications - This closer meets ANSI Grade 1 requirements, is ASA compliant, and has a 180-degree opening range. The adjustable spring tension powers this closer from a Size 1 to a Size 6 to provide adjustment for light to heavy applications.

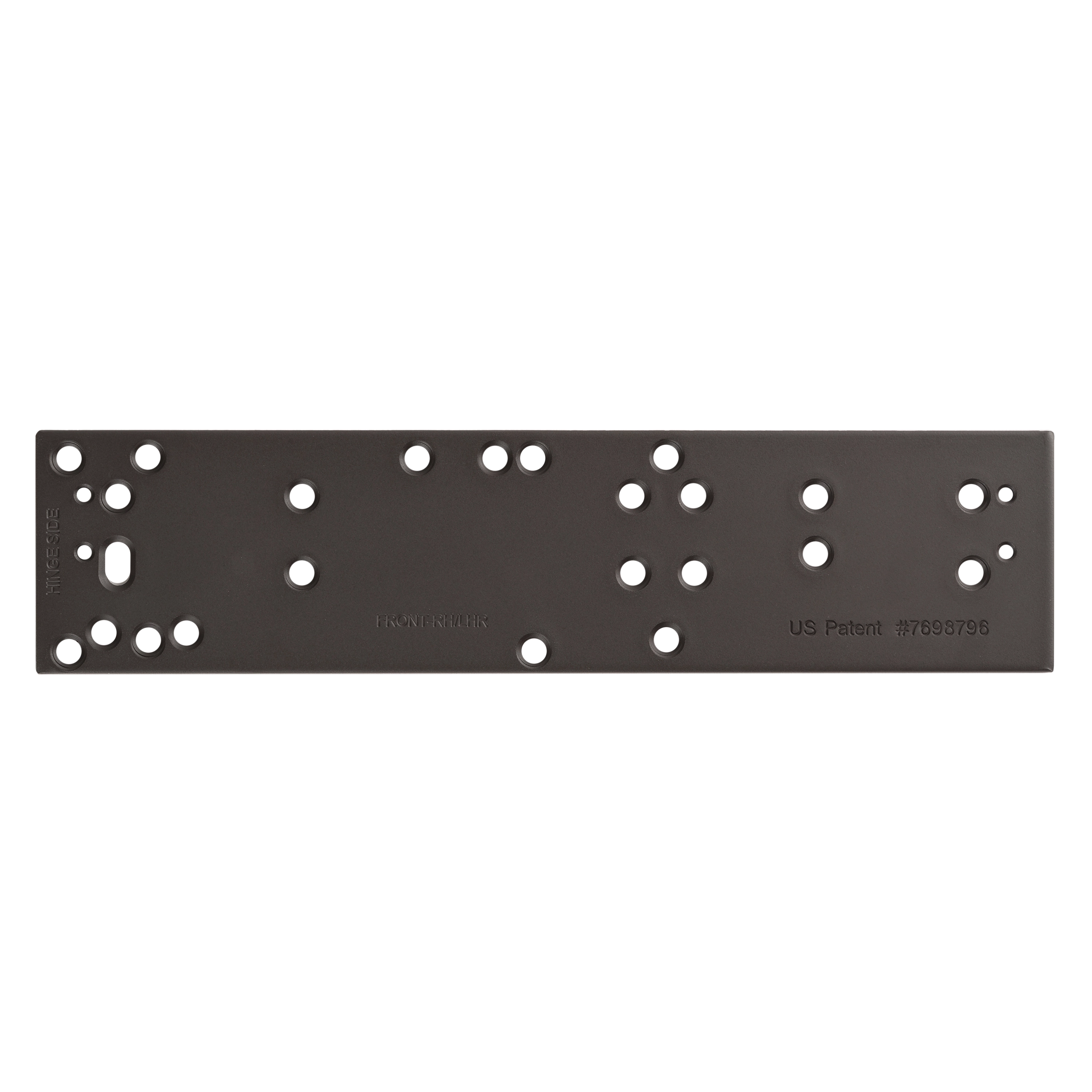

  • Installation - Compatible with most commercial doors, and can be utilized in standard, top jamb, and parallel mounting applications. Features a patented universal mounting plate with holes that match the hole patterns of most closers on the market.
  • Universal Hardware is the pro's choice for commercial door hardware and flat goods.

Buy Online:

Home Depot Product URL

Color: Bronze

Share this:

Product Description

This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety. For exterior doors up to 48” and interior doors up to 60”. This closer meets ANSI Grade 1 requirements, is ASA compliant, and has a 180-degree opening range. Adjustable closing, latching and backcheck speeds, and the adjustable spring tension powers this closer from a Size 1 to a Size 6 to provide power adjustment for light to very heavy applications. Compatible with most commercial doors, and can be utilized in standard, top jamb and parallel mounting applications. Features a patented universal mounting plate with holes that match the hole patterns of most closers in the market, so you can replace a broken closer without drilling new holes in an expensive or fire-rated door. Universal Hardware is the pro's choice for commercial door hardware and flat goods.

Videos

Heavy Duty All-In-One Commercial Door Closer - Install Video V1

Universal Hardware

Heavy Duty All-In-One Commercial Door Closer - Install Video V2

Universal Hardware

Heavy Duty All-In-One Commercial Door Closer - Install Video V3

Universal Hardware

Heavy Duty All-In-One Commercial Door Closer - Install Video V4

Universal Hardware

Heavy Duty All-In-One Commercial Door Closer - Install Video V5

Universal Hardware

Heavy Duty All-In-One Commercial Door Closer - Marketing Video V1

Universal Hardware

Additional Images

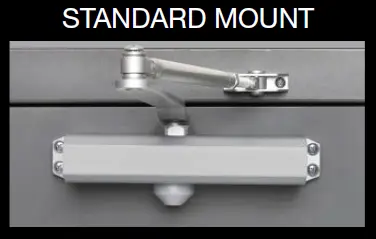

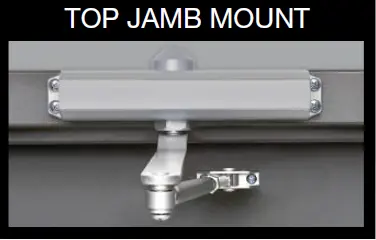

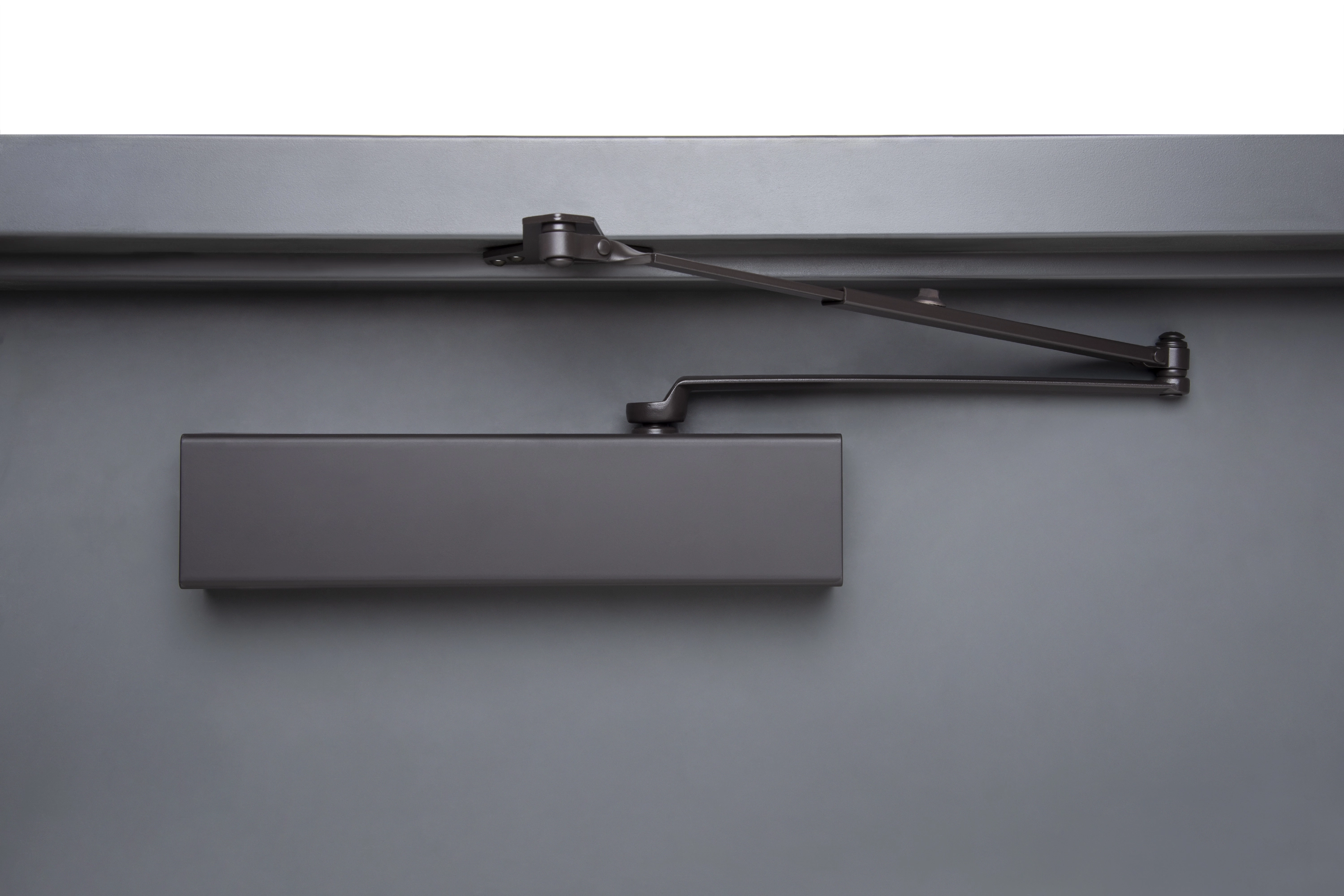

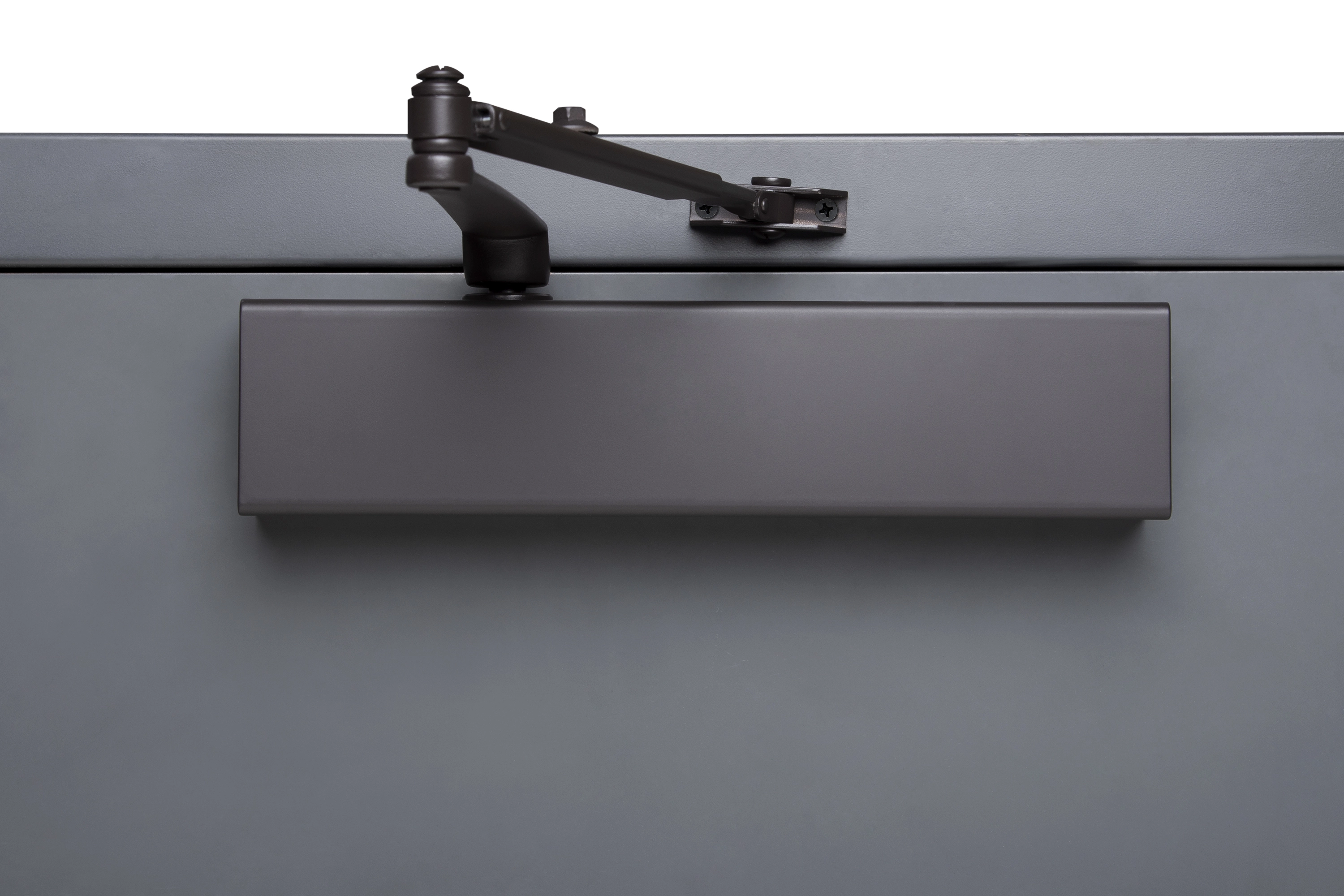

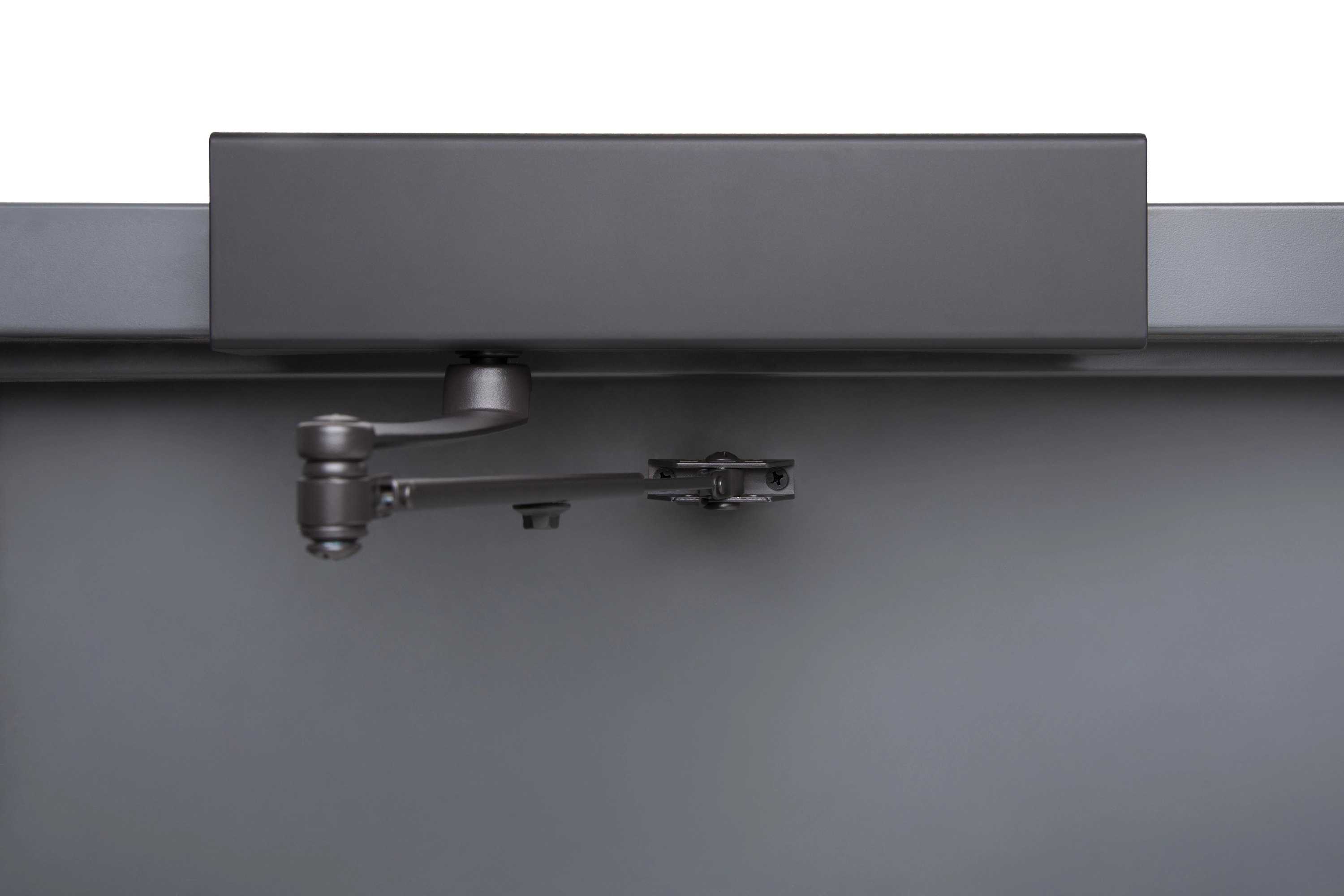

Mounting Configurations

UH4062 Installation Image 1
UH4062 Installation Image 2
UH4062 Installation Image 3

Drawings

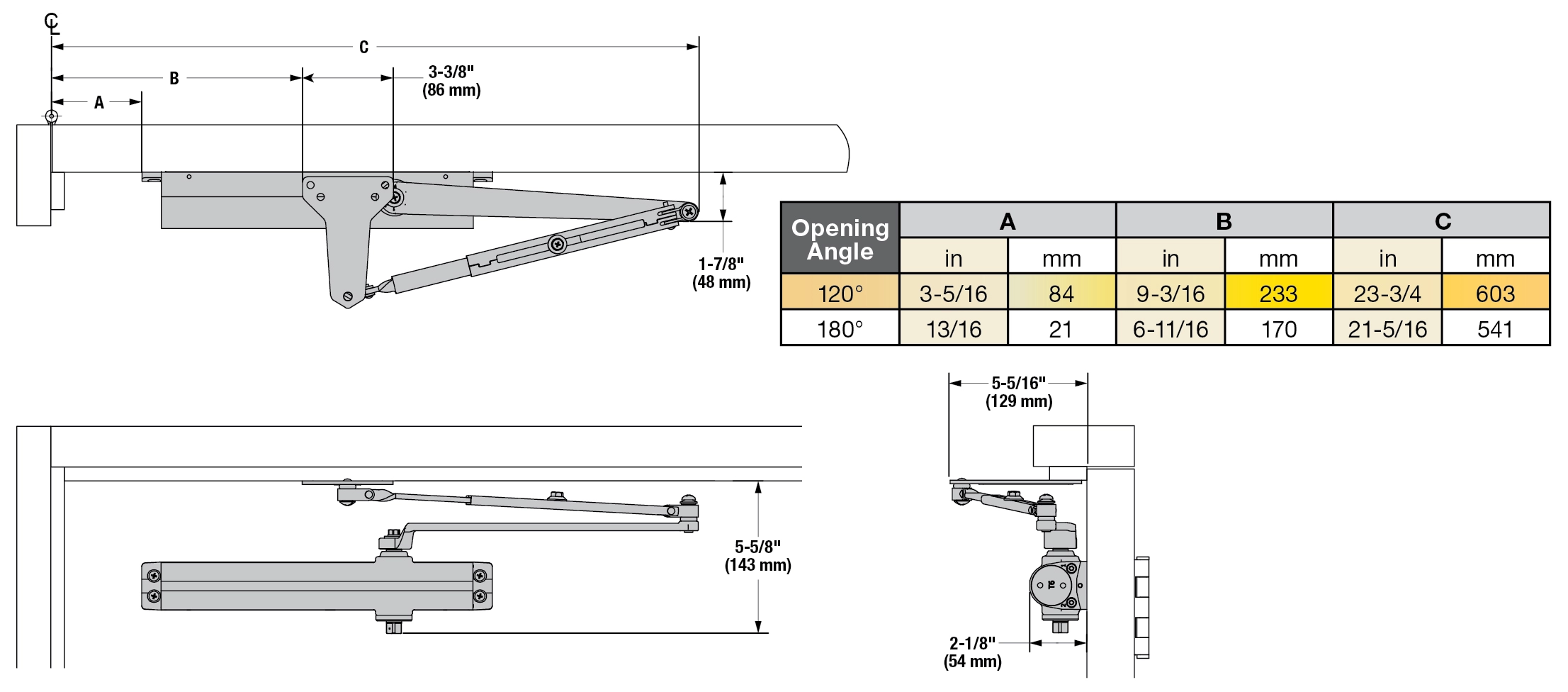

UH4062 Dimension Drawing

Files

Sell sheet icon

Instructions 1

DOWNLOAD
Sell sheet icon

Instructions 2

DOWNLOAD
Sell sheet icon

Instructions 3

DOWNLOAD
Sell sheet icon

Installation Guide 1

DOWNLOAD

Product Information

Technical Details

Color

Bronze

Fineline

Commercial Closer

Height

3.25 in

Width

13.88 in

Depth

5.25 in

Weight

9.82 lb

Mount Type

Standard, Top Jamb, Parallel

Interior Door Compatibility

Left or right hinged doors up to 250 lbs. and 60" wide

Exterior Door Compatibility

Left or right hinged doors up to 250 lbs. and 48" wide

Closer Rating

Adjustable Size 1-6

OpeningRange

180 Degrees

Mount Type

Standard, Top Jamb, Parallel

Warranty

10 Year Limited Warranty

Made In

Taiwan (TW)

Additional Information

Category

Door Closers

Fineline

Commercial Closer

UPC

039208219891
