Heavy Duty All-In-One Commercial Door Closer

SKU UH4063

  • Features - This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety.
  • Measurements - For exterior doors up to 250 lbs. and 48” wide and interior doors up to 250 lbs. and 60” wide.
  • Specifications - This closer meets ANSI Grade 1 requirements, is ADA compliant, and has a 180-degree opening range. The adjustable spring tension powers this closer from a Size 1 to a Size 6 to provide adjustment for light to heavy applications.
  • Installation - Compatible with most commercial doors, and can be utilized in standard, top jamb, and parallel mounting applications. Features a patented universal mounting plate with holes that match the hole patterns of most closers on the market.
  • Universal Hardware is the pro's choice for commercial door hardware and flat goods.

Buy Online:

Home Depot Product URL

Color: Matte Black

Share this:

Product Description

This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety. For exterior doors up to 48” and interior doors up to 60”. This closer meets ANSI Grade 1 requirements, is ADA compliant, and has a 180-degree opening range. Adjustable closing, latching and backcheck speeds, and the adjustable spring tension powers this closer from a Size 1 to a Size 6 to provide power adjustment for light to very heavy applications. Compatible with most commercial doors, and can be utilized in standard, top jamb and parallel mounting applications. Features a patented universal mounting plate with holes that match the hole patterns of most closers in the market, so you can replace a broken closer without drilling new holes in an expensive or fire-rated door. Universal Hardware is the pro's choice for commercial door hardware and flat goods.

ANSI BadgeDisability BadgeUL BadgeWarranty Badge

Construction

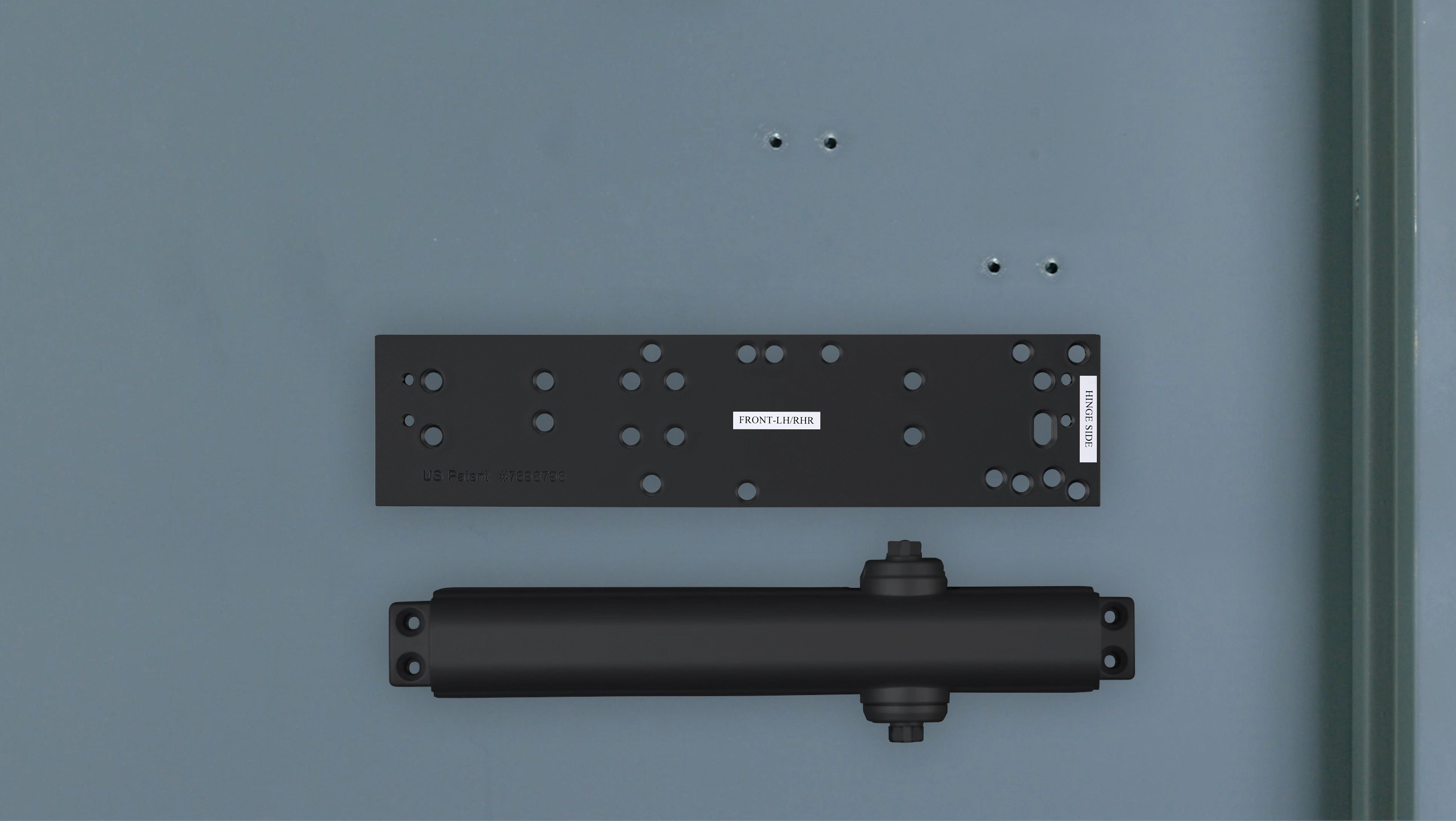

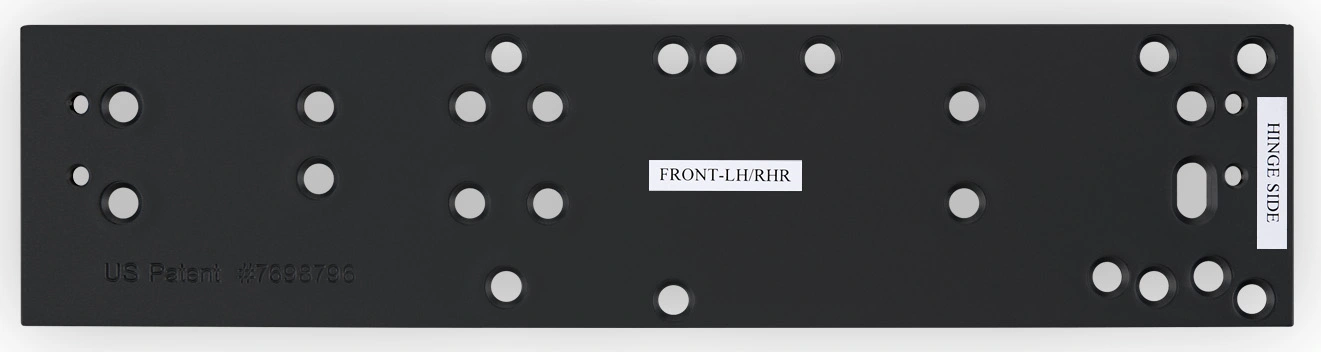

  • Universal mounting plate: Pre-drilled steel plate matches hole patterns of most closers in the market
  • All metal body construction for added durability
  • Sleek matte black finish
  • Included hardware: finish matched closer body, mounting screws, and installation instructions

Durability

  • Grade: Meets ANSI Grade 1 standards for heavy-duty use
  • Able to be used indoors or outdoors
  • Warranty: Limited 10-year warranty covers finish and function
  • UL Listed: 3-hour fire rated for added protection and meeting building requirements

Installation

  • Adjustable closing and latching speeds eliminate door slamming
  • Adjustable back check helps prevent wind damage for exterior facing doors
  • Opening range: 180-degree for added convenience and pass-through space
  • Mounting: Standard, top jamb or parallel mounting
  • Adjustable sizing 1-6: Provides ability to use in a variety of applications from light to heavy duty
  • Interior doors: Left or right hinged doors up to 250 lbs and 60" wide
  • Exterior doors: Left or right hinged doors up to 250 lbs. and 48" wide

Videos

Universal Hardware UH4061/UH406/UH4063 Parallel Mount Instructions. No Universal Mounting Plate
Universal Hardware Logo

Universal Hardware UH4061/UH406/UH4063 Parallel Mount Instructions. No Universal Mounting Plate

Universal Hardware UH4061/UH4062/UH4063 Parallel Mount Install Instructions with Mounting Plate
Universal Hardware Logo

Universal Hardware UH4061/UH4062/UH4063 Parallel Mount Install Instructions with Mounting Plate

Universal Hardware UH4061/UH4062/UH4063 Standard Mount Installation Instructions. No Mounting Plate.
Universal Hardware Logo

Universal Hardware UH4061/UH4062/UH4063 Standard Mount Installation Instructions. No Mounting Plate.

Universal Hardware UH4061/UH4062/UH4063 Standard Mount Install with Universal Mounting Plate
Universal Hardware Logo

Universal Hardware UH4061/UH4062/UH4063 Standard Mount Install with Universal Mounting Plate

Universal Hardware UH4061/UH4062/UH4063 Top Jamb Install Instructions. No Universal Mounting Plate.
Universal Hardware Logo

Universal Hardware UH4061/UH4062/UH4063 Top Jamb Install Instructions. No Universal Mounting Plate.

Universal Hardware UH4061/UH4062/UH4063 Top Jamb Install Instructions with Universal Mounting Plate.
Universal Hardware Logo

Universal Hardware UH4061/UH4062/UH4063 Top Jamb Install Instructions with Universal Mounting Plate.

Additional Images

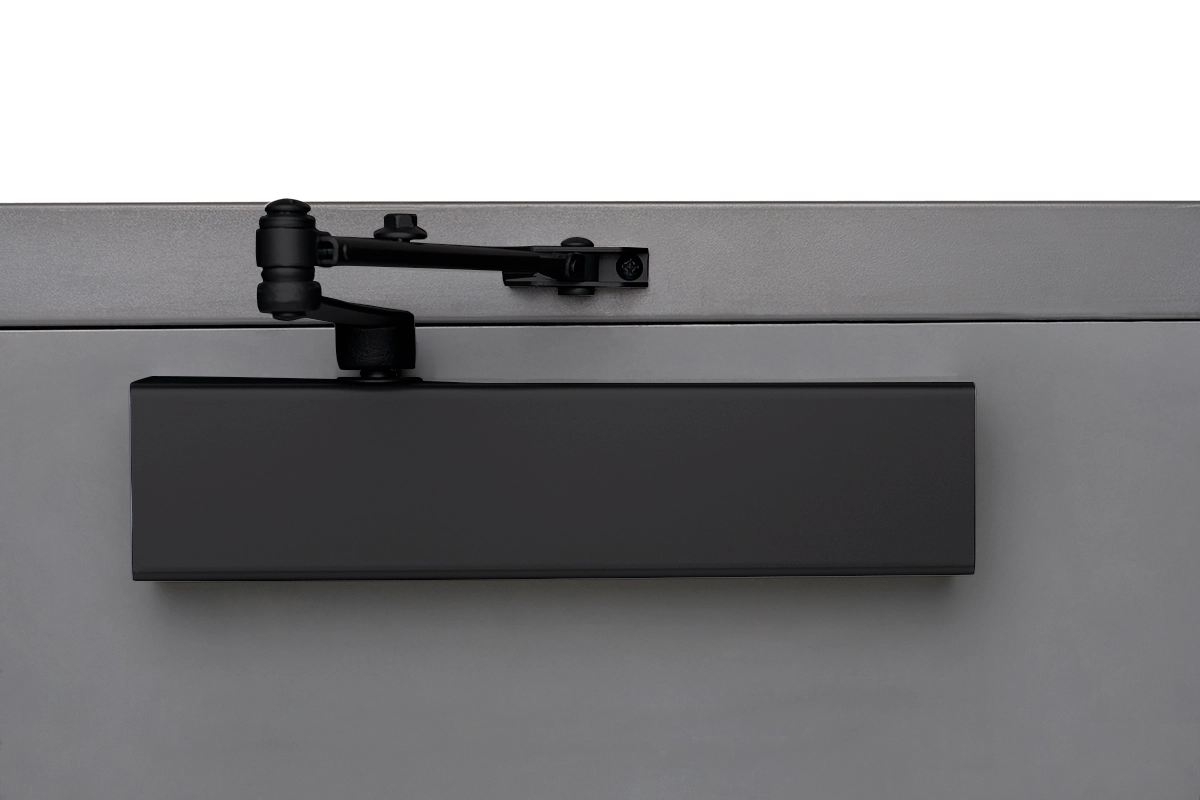

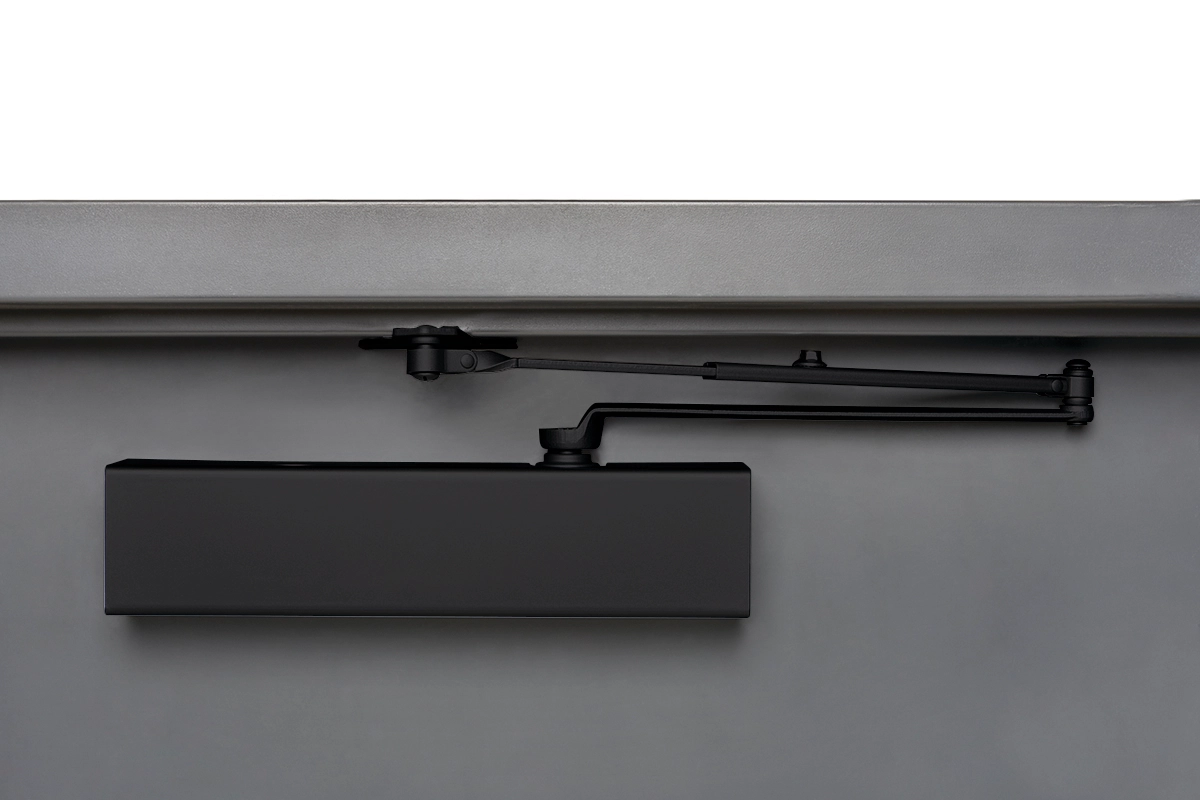

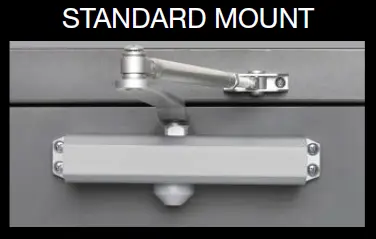

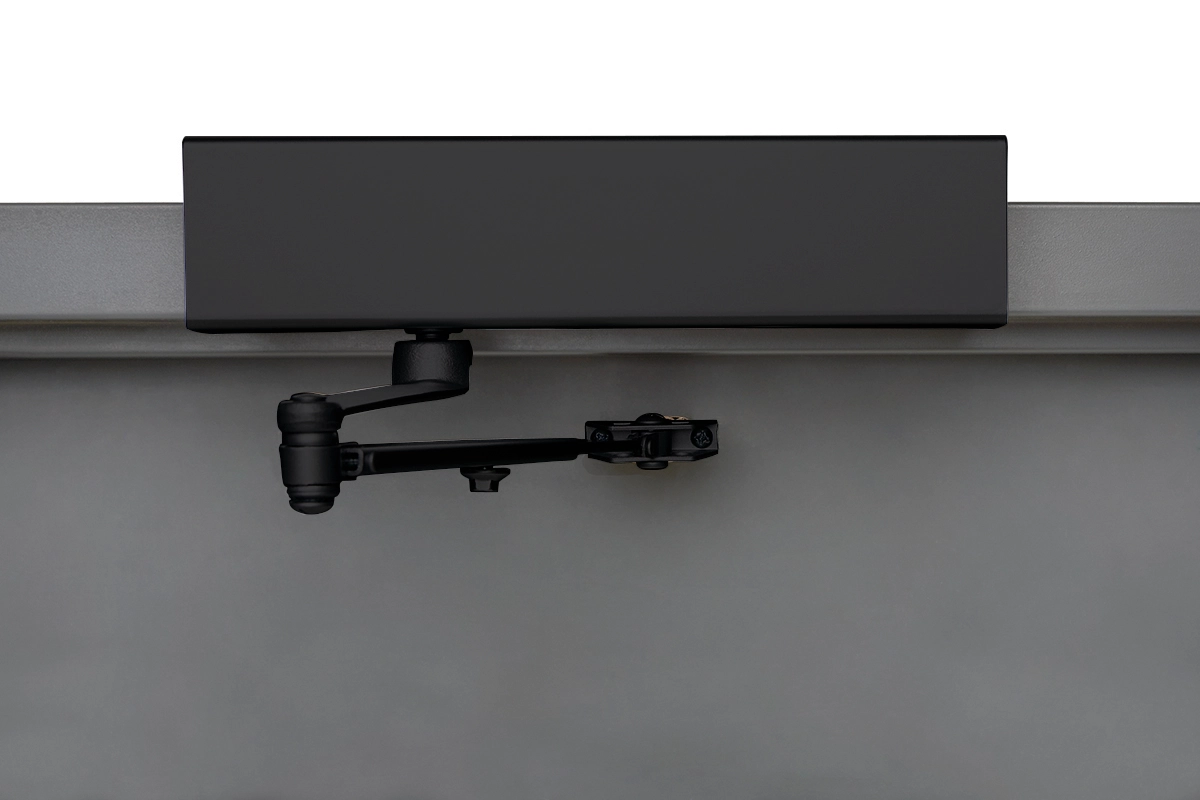

Mounting Configurations

UH4063 Installation Image 1
UH4063 Installation Image 2
UH4063 Installation Image 3

Drawings

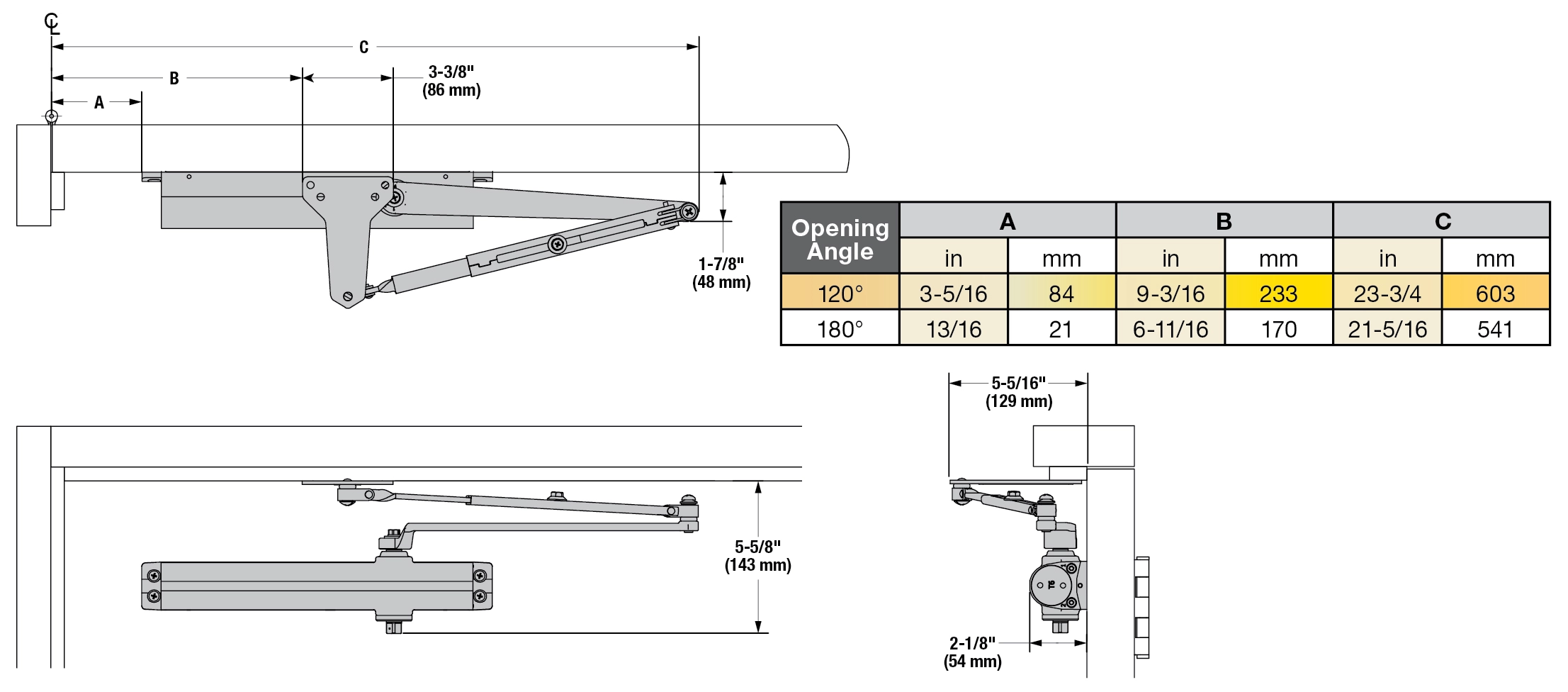

UH4063 Dimension Drawing

Files

Sell sheet icon

Instructions 1

Download
Sell sheet icon

Instructions 2

Download
Sell sheet icon

Instructions 3

Download

Product Information

Technical Details

Color

Matte Black

Fineline

Commercial Closer

Mount Type

Standard, Top Jamb, Parallel

Interior Door Compatibility

Left or right hinged doors up to 250 lbs. and 60" wide

Exterior Door Compatibility

Left or right hinged doors up to 250 lbs. and 48" wide

Closer Rating

Adjustable Size 1-6

OpeningRange

180 Degrees

Mount Type

Standard, Top Jamb, Parallel

Warranty

10 Year Limited Warranty

Made In

Taiwan (TW)

Additional Information

Category

Door Closers

Fineline

Commercial Closer

UPC

039208242011
