Heavy Duty All-In-One Commercial Door Closer with FlexPlate
SKU UH4071
- Features - This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. Included FlexPlate adapts to the existing holes in your door for easy replacement of an old or broken door closer.
- Measurements - For exterior doors up to 250 lbs. and 48” wide and interior doors up to 250 lbs. and 60” wide
- Specifications - This closer meets ANSI Grade 1 requirements, is ADA compliant, and has a 180-degree opening range. The adjustable spring tension powers this closer from a Size 1 to a Size 6 to provide adjustment for light to heavy applications.
- Installation - Compatible with most commercial doors, and can be utilized in standard, top jamb, and parallel mounting applications. Included FlexPlate adapts to 80% of door closers hole patterns in the market for easy door closer replacement.
- Universal Hardware is the pro's choice for commercial door hardware and flat goods.
Buy Online:
Color: Aluminum
Share this:
Product Description

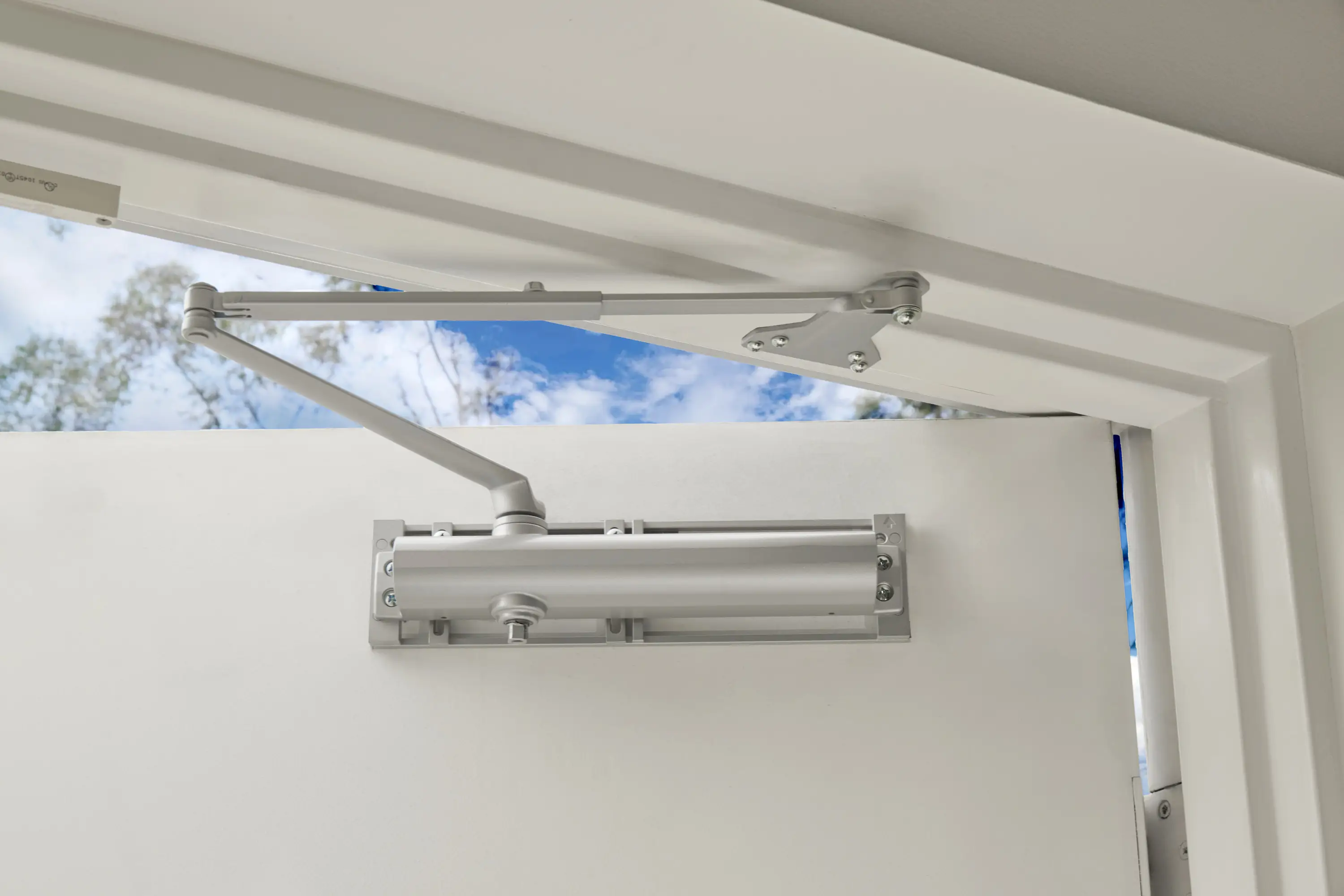

The Universal Hardware Heavy Duty Aluminum Door Closer with FlexPlate™ delivers strength, versatility, and ease of installation for professionals. The patent-pending FlexPlate™ system simplifies retrofitting by adapting to most existing hole patterns—no drilling additional holes. The plate and four adjustable sliders conform to nearly every door closer mounting configuration on the market. With adjustable spring tension (Size 1 to 6), this closer supports applications ranging from light interior doors to heavy-duty commercial use. Fine-tune performance with fully adjustable sweep speed, latching speed, and backcheck. Compatible mounting methods include regular arm, parallel arm, and top jamb installations.
Construction
- Built for High-Traffic - Constructed of steel and aluminum, this door closer and FlexPlate are intended for high-traffic interior or exterior applications.

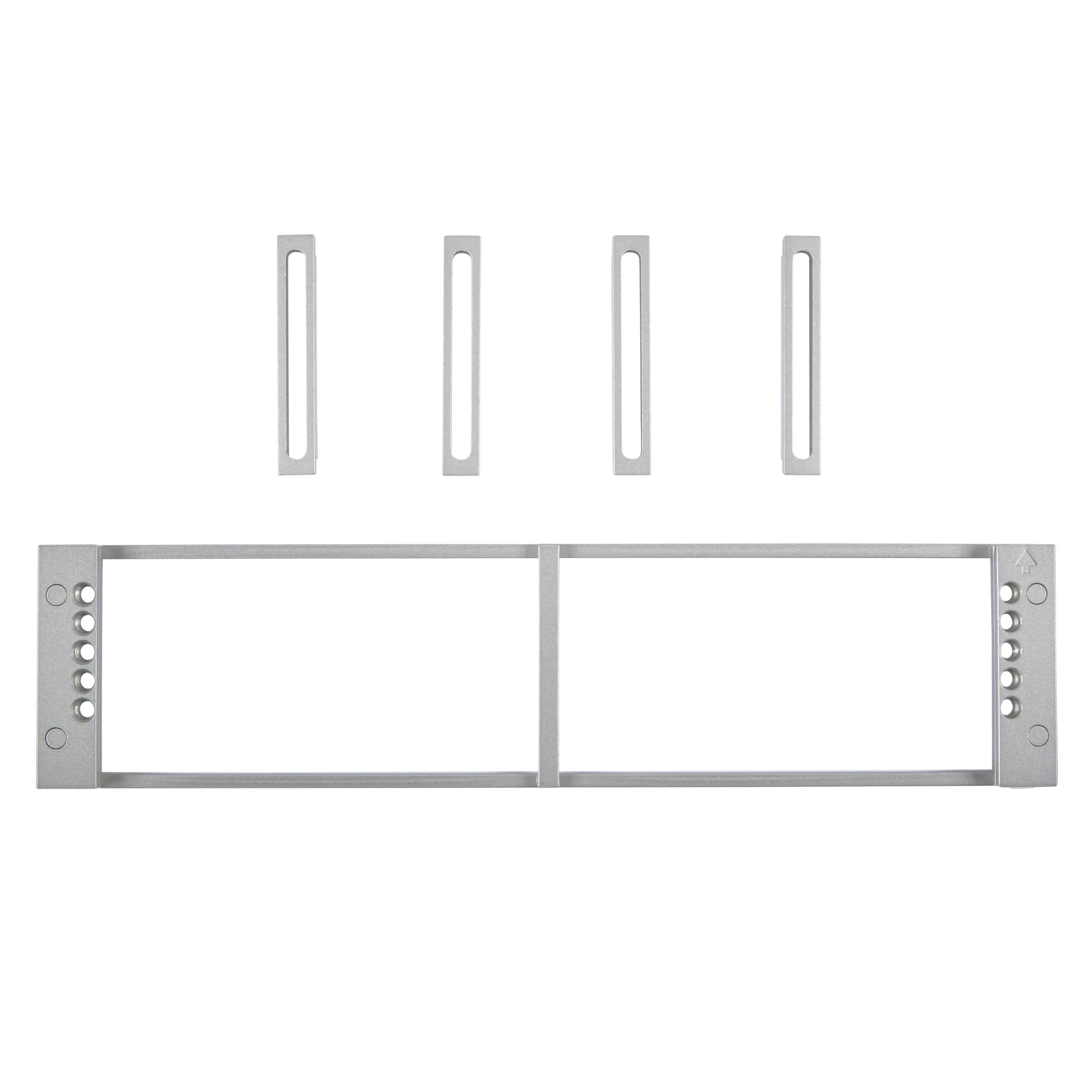

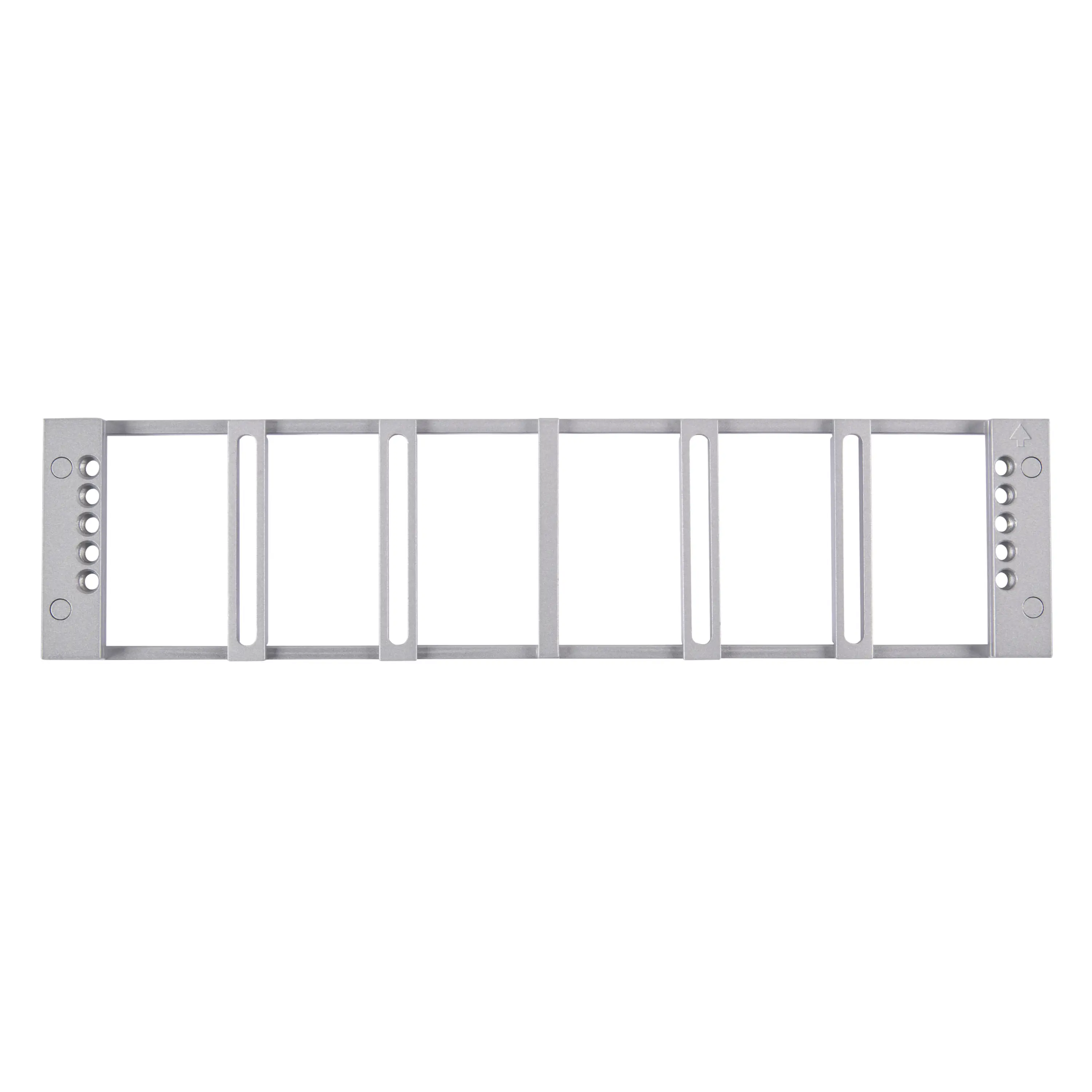

- FlexPlate - Includes (1) plate and (4) sliders that work together to adapt to more than 80% of the different closer hole patterns found in the market.
- Finish: Aluminum

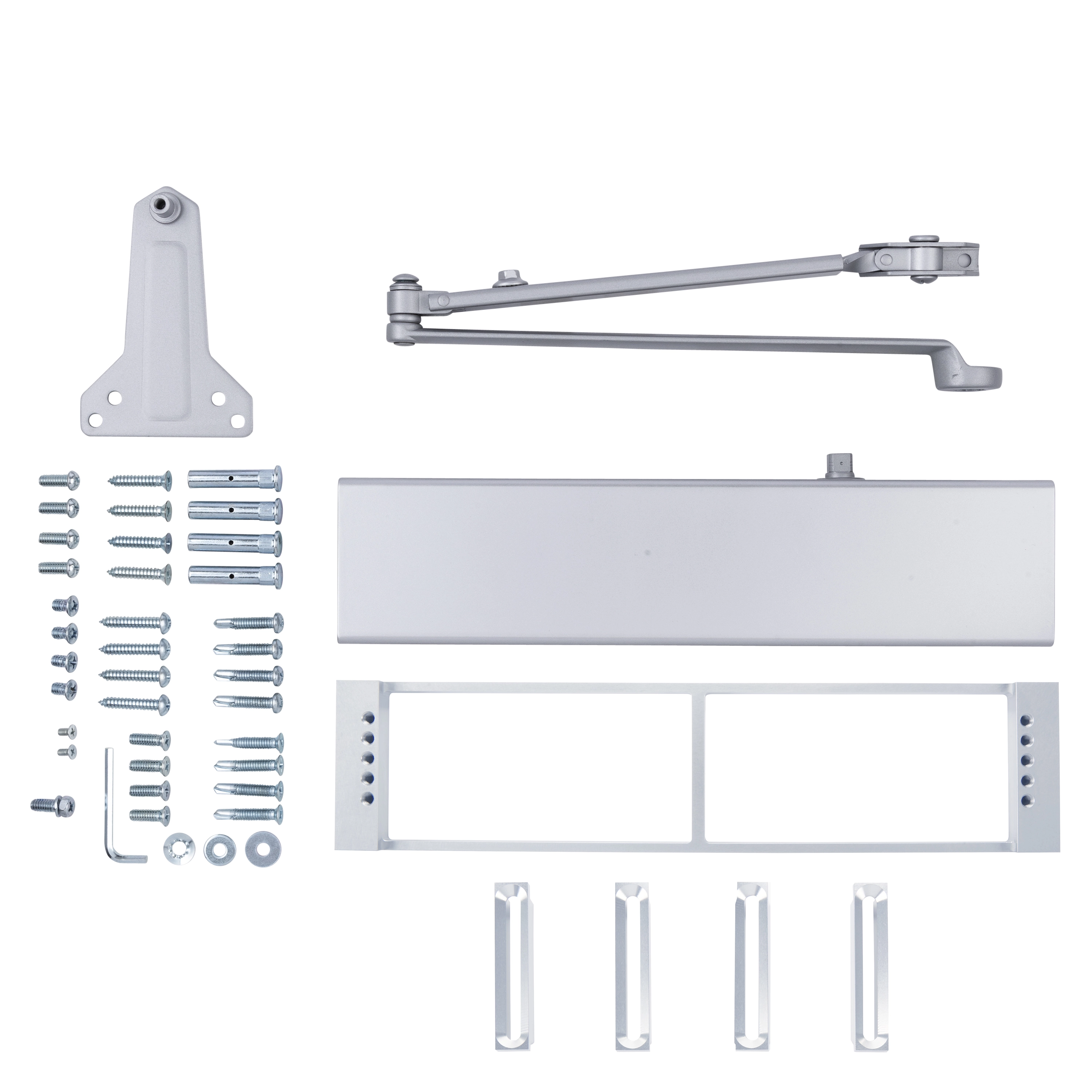

- Included Components: Closer body, FlexPlate, (4) sliders, parallel arm bracket, all hardware, and installation instructions
Durability
- Meets ANSI A156.4 Grade 1 Standards
- ANSI A117.1 ADA Compliant (Size 1)
- UL 3 Hour Fire Rated (UL10c)
- For interior or exterior applications
- Warranty: 10 year limited warranty covers finish and function
Installation
- Mounting Applications - Regular arm, top jamb, and parallel mount (Parallel arm bracket is included)

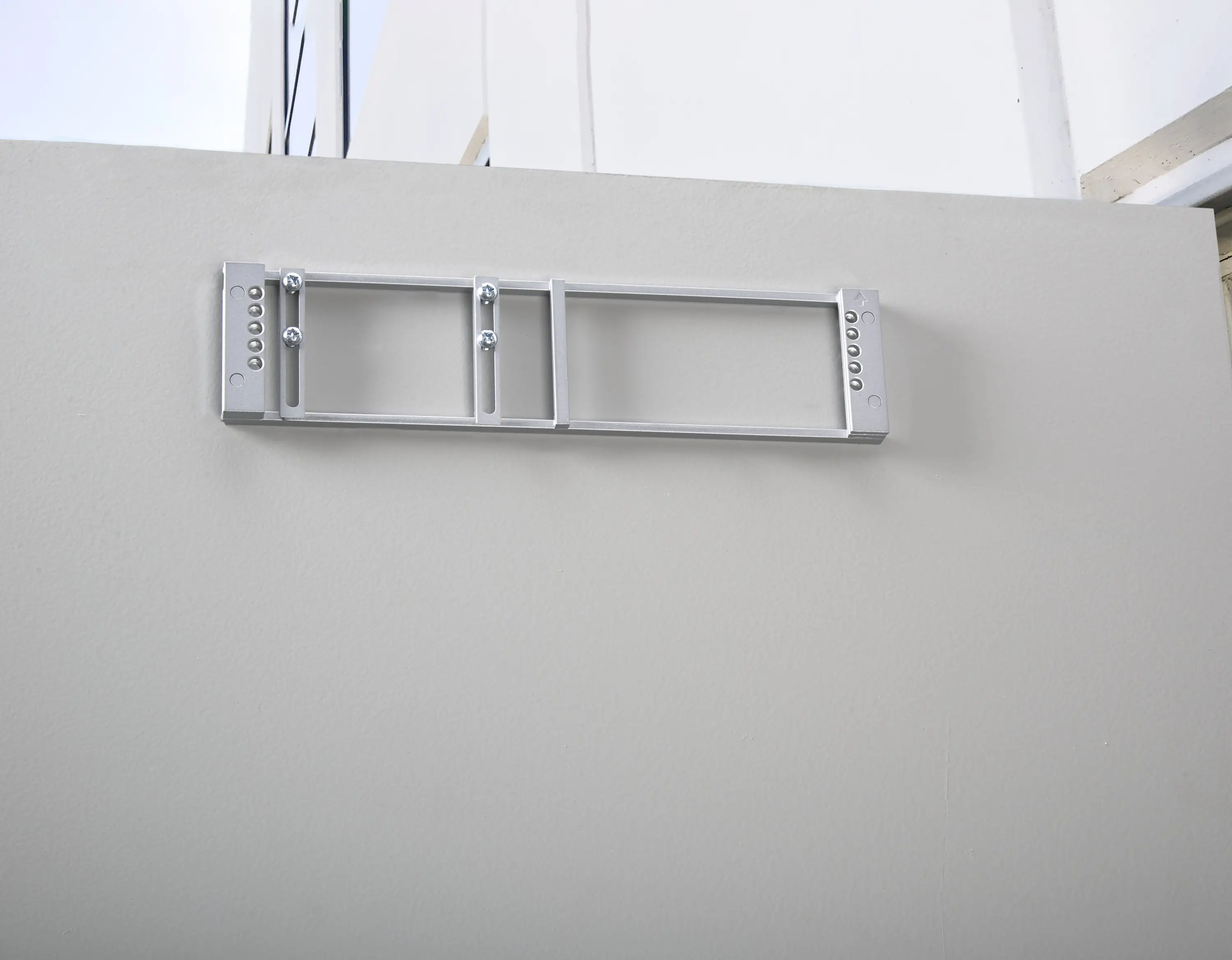

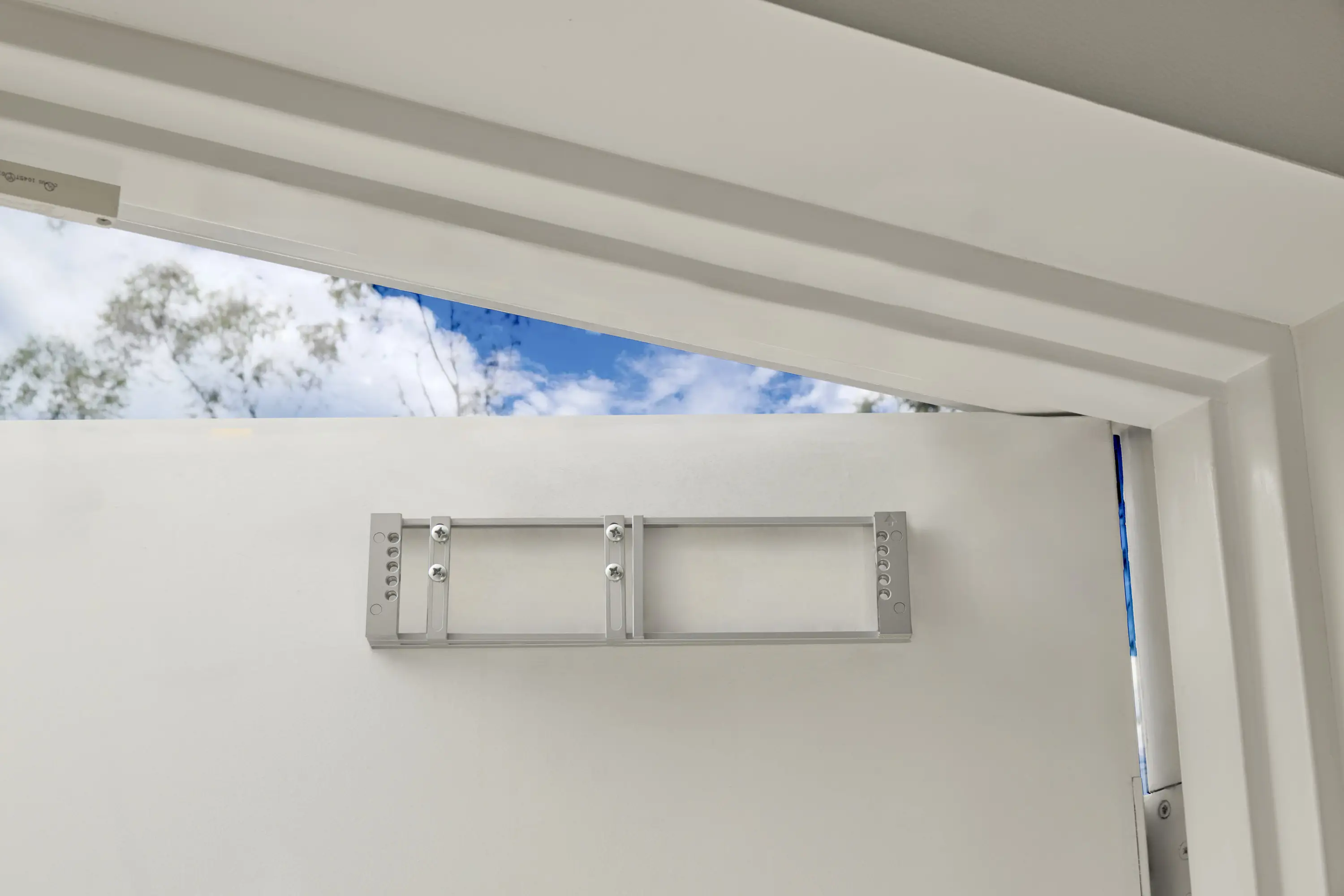

- FlexPlate - Use the plate and provided sliders to adapt to the existing holes in your door. Closer body then mounts to the plate.
- Adjustable sizing: Adjustable sizing from 1-6
- Adjustable sweep, latching, and backcheck valves
- Up to 180-degree opening range (Non-hold open)
- Interior Door Sizes - Left or right hinged doors up to 250lbs. and 60-in wide
- Exterior Door Sizes - Left or right hinged doors up to 250lbs. and 48-in wide
Videos
Universal Hardware - How To Use FlexPlate to Replace and Old or Broken Door Closer
Additional Images

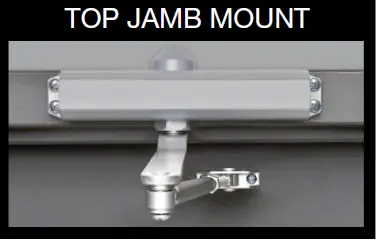

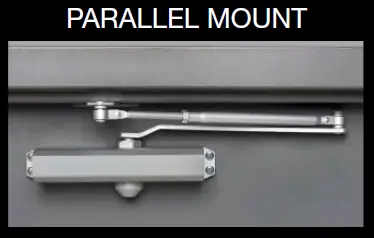

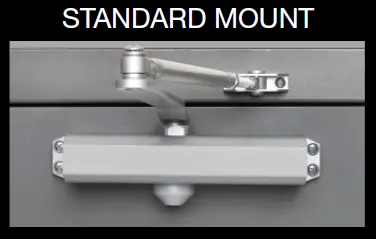

Mounting Configurations
Product Information
Technical Details
Color
Aluminum
Fineline
Commercial Closer
Height
3.92 in
Width
14.17 in
Depth
5.63 in
Weight
8.64 lb
Mount Type
Standard, Top Jamb, Parallel
Interior Door Compatibility
Left or right hinged doors up to 250 lbs. and 60" wide
Exterior Door Compatibility
Left or right hinged doors up to 250 lbs. and 48" wide
Closer Rating
Adjustable Size 1-6
OpeningRange
180 Degrees
Mount Type
Standard, Top Jamb, Parallel
Warranty
10 Year Limited Warranty
Made In
Taiwan (TW)
