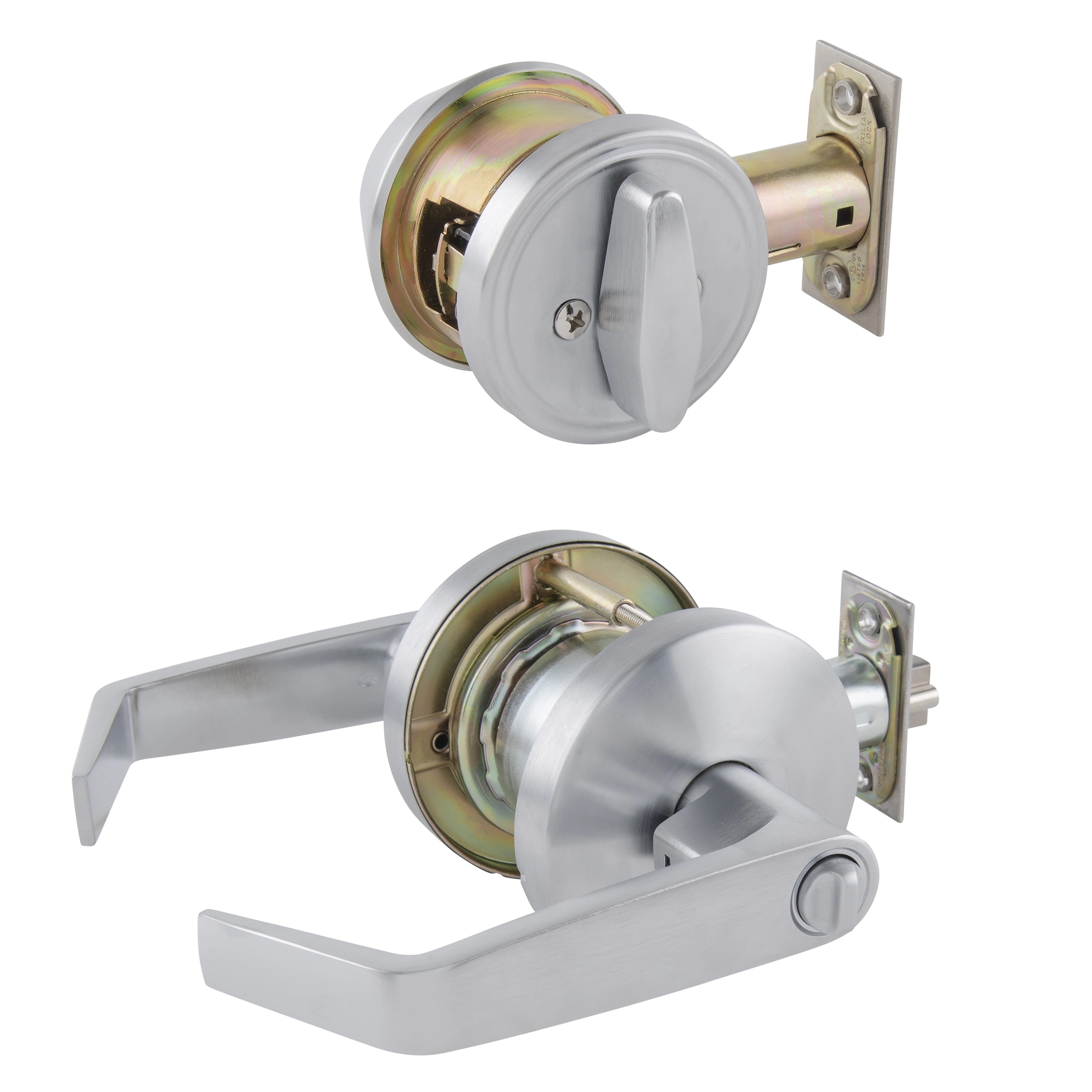

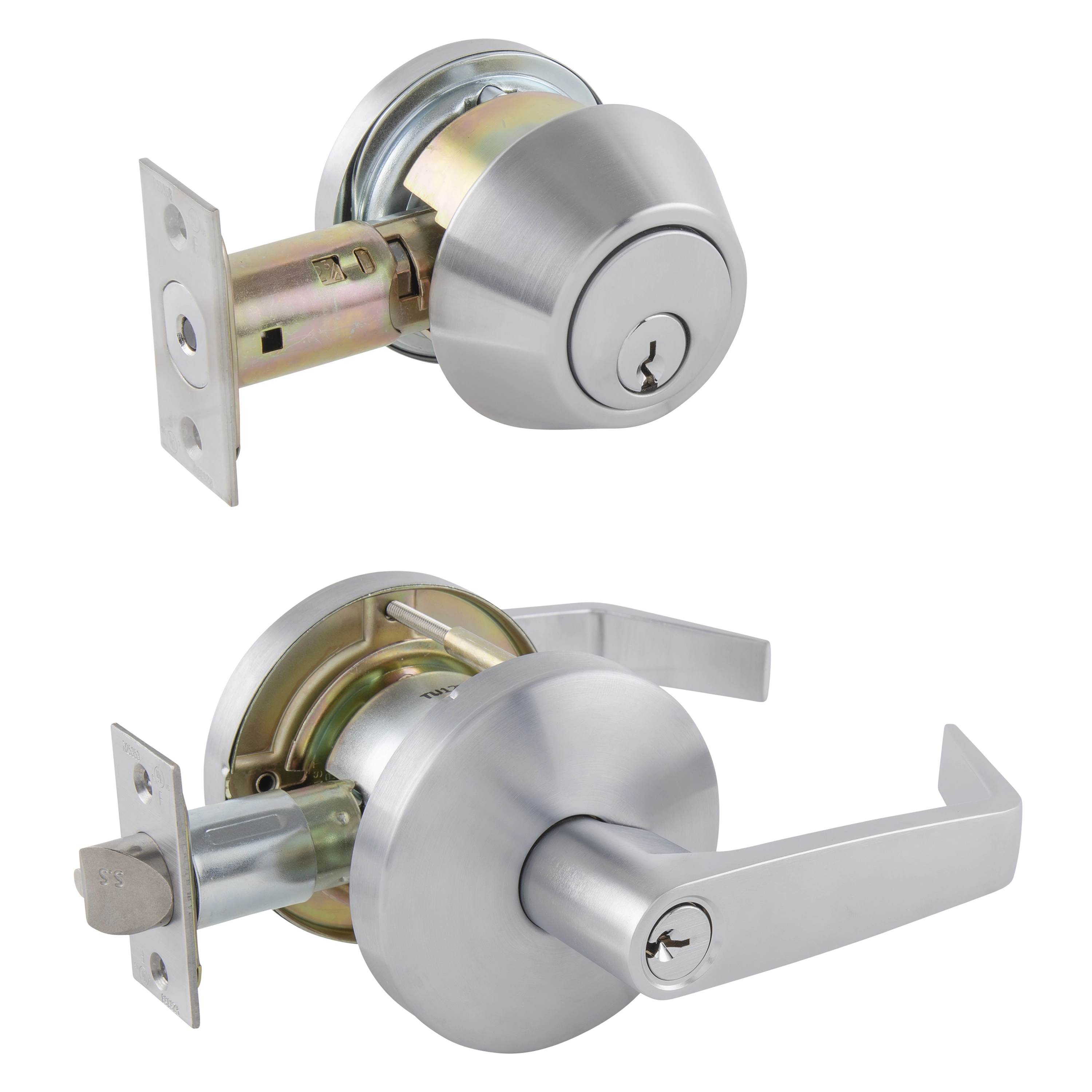

Heavy Duty Lever Deadbolt Combo
SKU UH40032
- Features - This heavy duty lever and deadbolt is reversible to work on both left- or right-handed doors. It comes with a cylindrical chassis, making it ideal for commercial applications and medium traffic doors such as entry doors and doors that require locking.
- Measurements - Fits 1-3/8” to 2” thick doors with a fixed latch that fits 2-3/4" backset.
- Specifications - Meets ANSI Grade 2 standards, meets ADA requirements, and has a 3-hour UL fire rating. Made from corrosion-resistant steel. Keyed lock and deadbolt has a 6-pin SC4 cylinder, brass plug, and includes 3 keys. Both lever and deadbolt are keyed alike.
- Installation - Includes T-strike and 4-7/8" ASA strike and deadbolt strike. Easy to install on wood or metal doors and has been tested to exceed 500,000 cycles. keyed entry lever has push/turn button locking on interior lever. Deadbolt has a thumbturn on interior cylinder.
- Universal Hardware is the pro's choice for commercial door hardware and flat goods.
Buy Online:
Color: Satin Chrome
Function: Keyed Entry
Share this:
Product Description
The Universal Hardware Heavy Duty Keyed Entry Lever and Deadbolt Combo is designed for entry doors or doorways where added security is needed. Turning the inside button locks outside lever until unlocked with a key or turn button is manually unlocked. A 5-Pin SC1 cylinder and brass plug provide added security and peace of mind. Equipped with cyclindrical chassis for commercial use,, the keyed entry lever will fit wood or metal doors 1-3/4" to 2" thick. The Heavy Duty Keyed Entry Lever features 4-5/8" solid zinc diecast levers, an ANSI Grade 2 rating, a 3 hour fire rating (UL Listed) and is ADA compliant for commercial. The deadbolt features a saw resistant deadbolt latch and an adjustable 2-3/8" or 2-3/4" backset. A T-strike, 4-7/8" ASA strike, Deadbolt strike, 2 keys, mounting hardware and installation instructions are included.
Construction
- Equipped with 4-5/8" solid zinc diecast levers
- Sleek satin chrome finish
- Heavy duty cylindrical construction
- Packaged with 4-7/8" ASA ANSI strike and T-strike
- Saw resistant deadbolt latch
- Lever latch: 2-3/4" fixed backset
- Deadbolt latch: 2-3/8" or 2-3/4" backset
- 6-Pin SC4 Brass cylinder
- Optional through-bolt design
Durability
- ANSI Grade 2 rating for commercial use
- UL Listed: 3 Hour fire rated for added protection and meeting building requirements
- ADA Compliant: Meets ADA requirements, ensuring accessibility to all disabled persons
- Full lifetime warranty
Installation
- Door Type: Wood or Metal doors 1-3/4"-2" thick
- Non-Handed: Can be applied to left or right handed doors

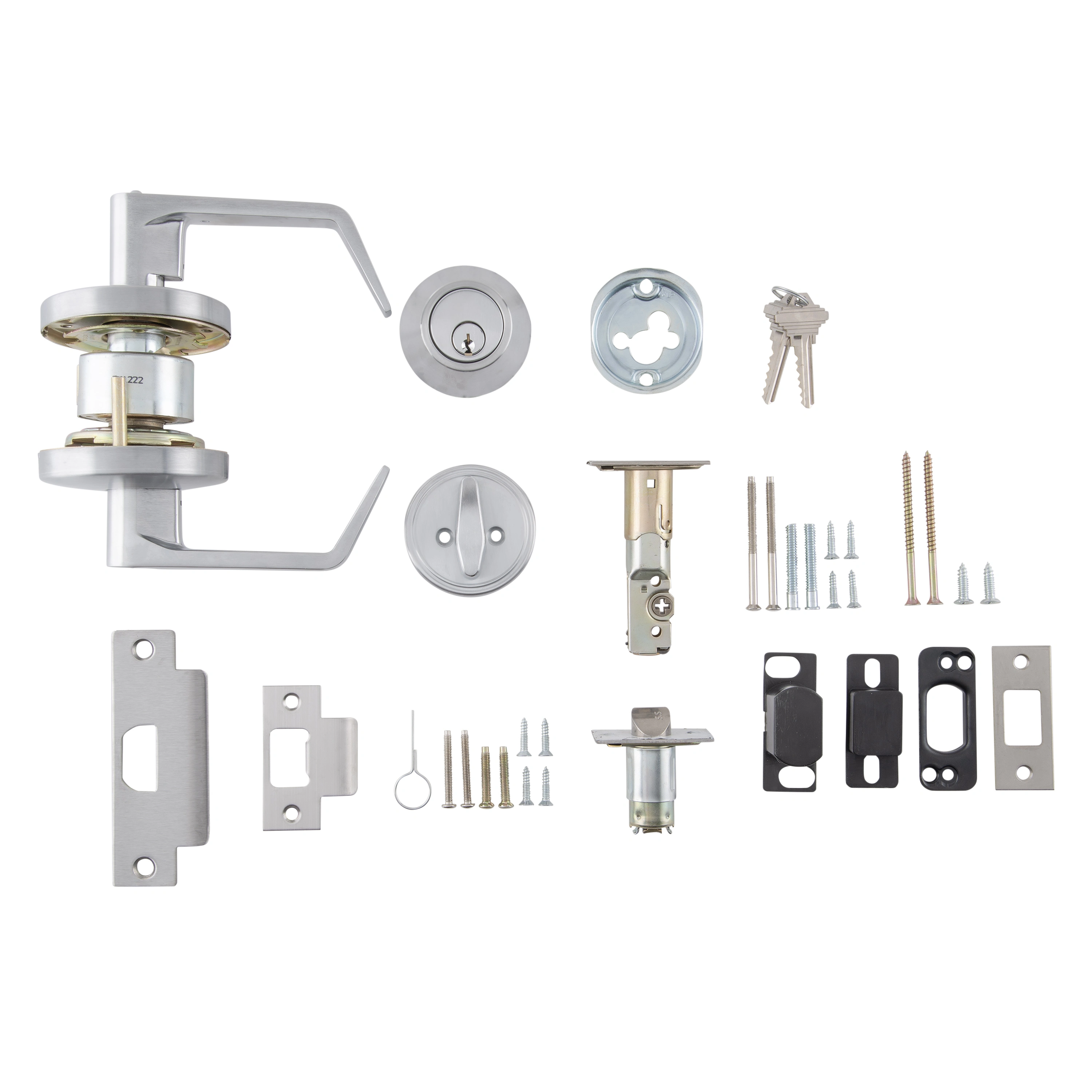

- Included hardware: Mounting screws, 2 keys and installation instructions
Videos
Universal Hardware Heavy Duty Lever Installation
Product Information
Technical Details
Function
Keyed Entry
Color
Satin Chrome
Height
9.88 in
Width
11.13 in
Depth
3.5 in
Weight
5.49 lb
Interior Door Compatibility
Left or right handed wood or metal doors 1-3/4" - 2" thick
Exterior Door Compatibility
Left or right handed wood or metal doors 1-3/4" - 2" thick
Warranty
Full lifetime
Made In
China (CN)
