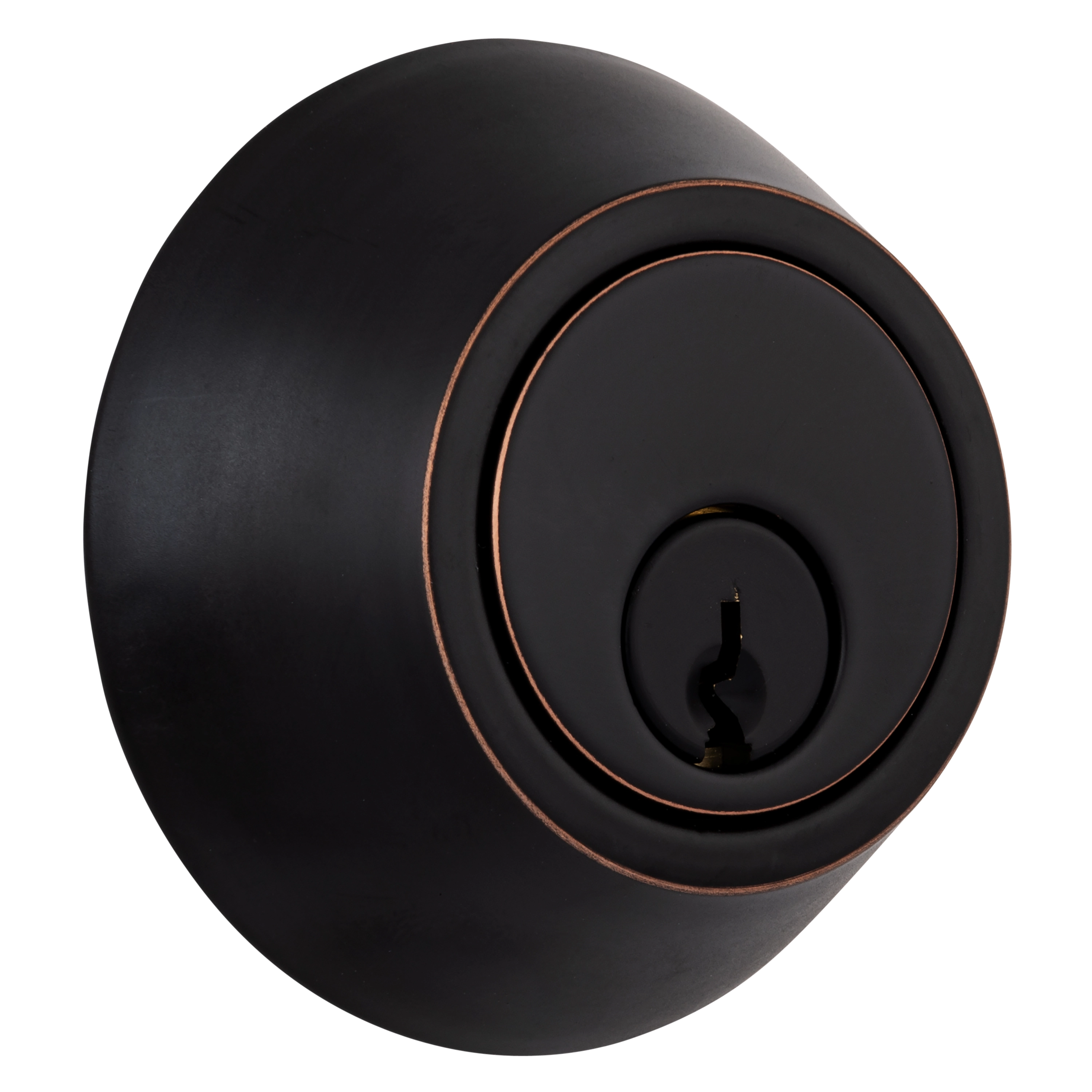

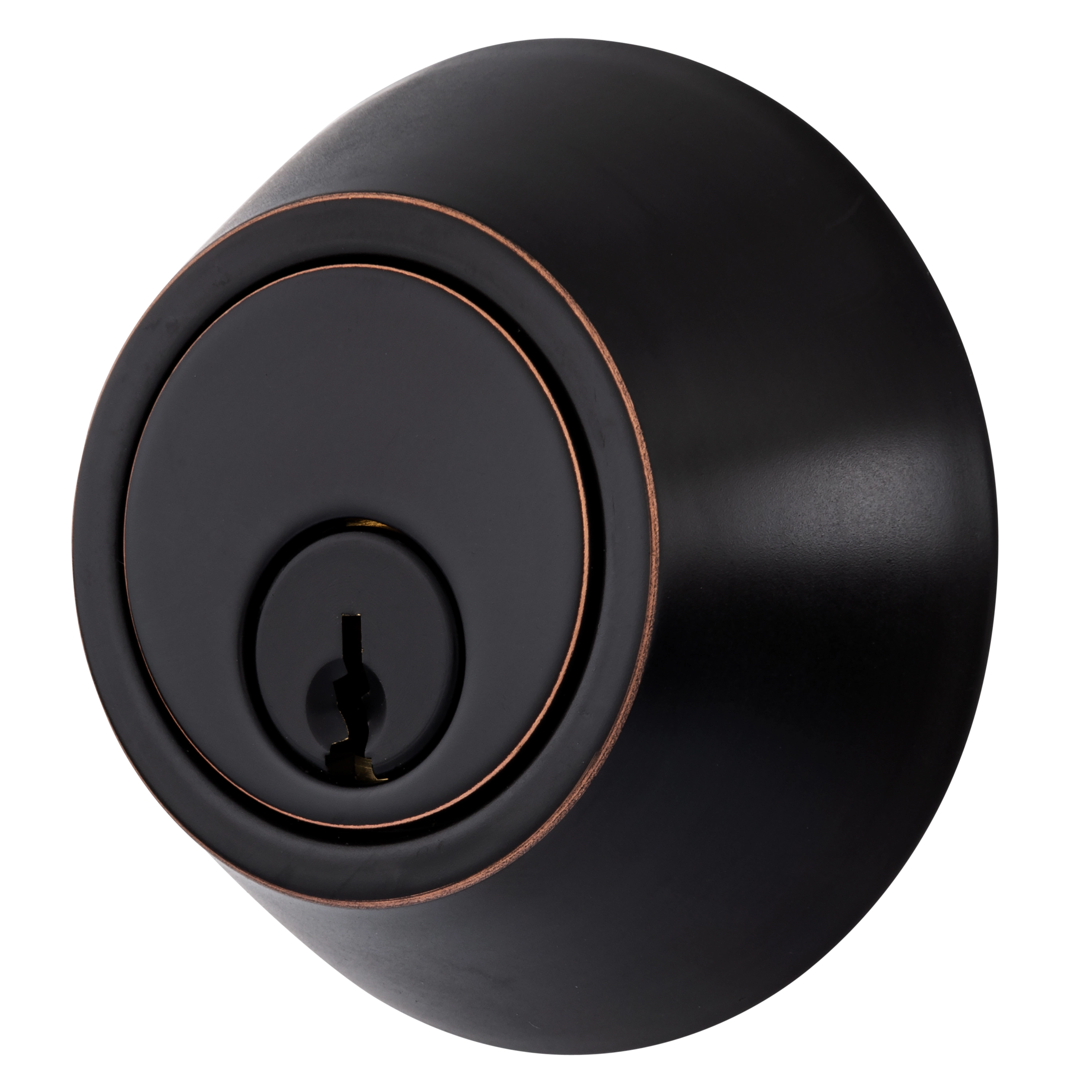

Industrial Duty Single Cylinder Deadbolt
Industrial Duty Single Cylinder Deadbolt variant image view
Industrial Duty Single Cylinder Deadbolt variant image view
Industrial Duty Single Cylinder Deadbolt variant image view
Industrial Duty Single Cylinder Deadbolt variant image view
Industrial Duty Single Cylinder Deadbolt variant image view
Industrial Duty Single Cylinder Deadbolt variant image view
Industrial Duty Single Cylinder Deadbolt variant image view
Industrial Duty Single Cylinder Deadbolt variant image view
Industrial Duty Single Cylinder Deadbolt variant image view
Industrial Duty Single Cylinder Deadbolt variant image view
Industrial Duty Single Cylinder Deadbolt variant image view
Industrial Duty Single Cylinder Deadbolt variant image view

Industrial Duty Single Cylinder Deadbolt

SKU UH40066

  • Features - This single cylinder deadbolt is designed for interior or exterior applications where security is important.
  • Measurements - Fits 1-3/8” to 2” thick doors with an adjustable latch that fits 2-3/8" or 2-3/4" backset.
  • Specifications - Meets ANSI Grade 1 standards and has a 3-hour UL fire rating. Made from corrosion-resistant steel. Keyed lock has a 6-pin SC4 brass cylinder in the deadbolt and includes 2 keys.
  • Installation - Compatible with most interior residential and commercial doors, with a saw resistant deadbolt latch and anti-pry metal collar.
  • Universal Hardware is the pro's choice for commercial door hardware and flat goods.

Buy Online:

Home Depot Product URL

Color: Bronze

Share this:

Product Description

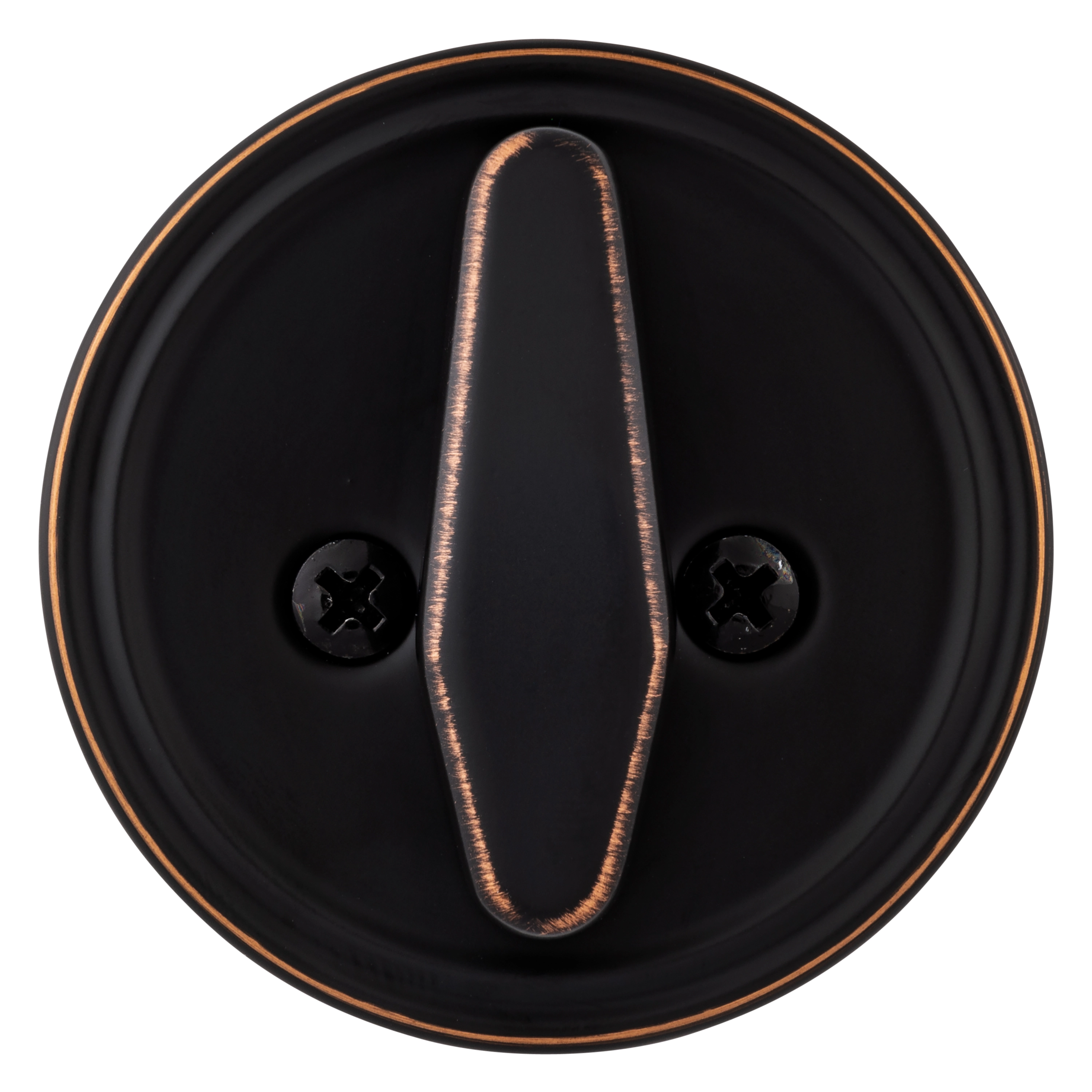

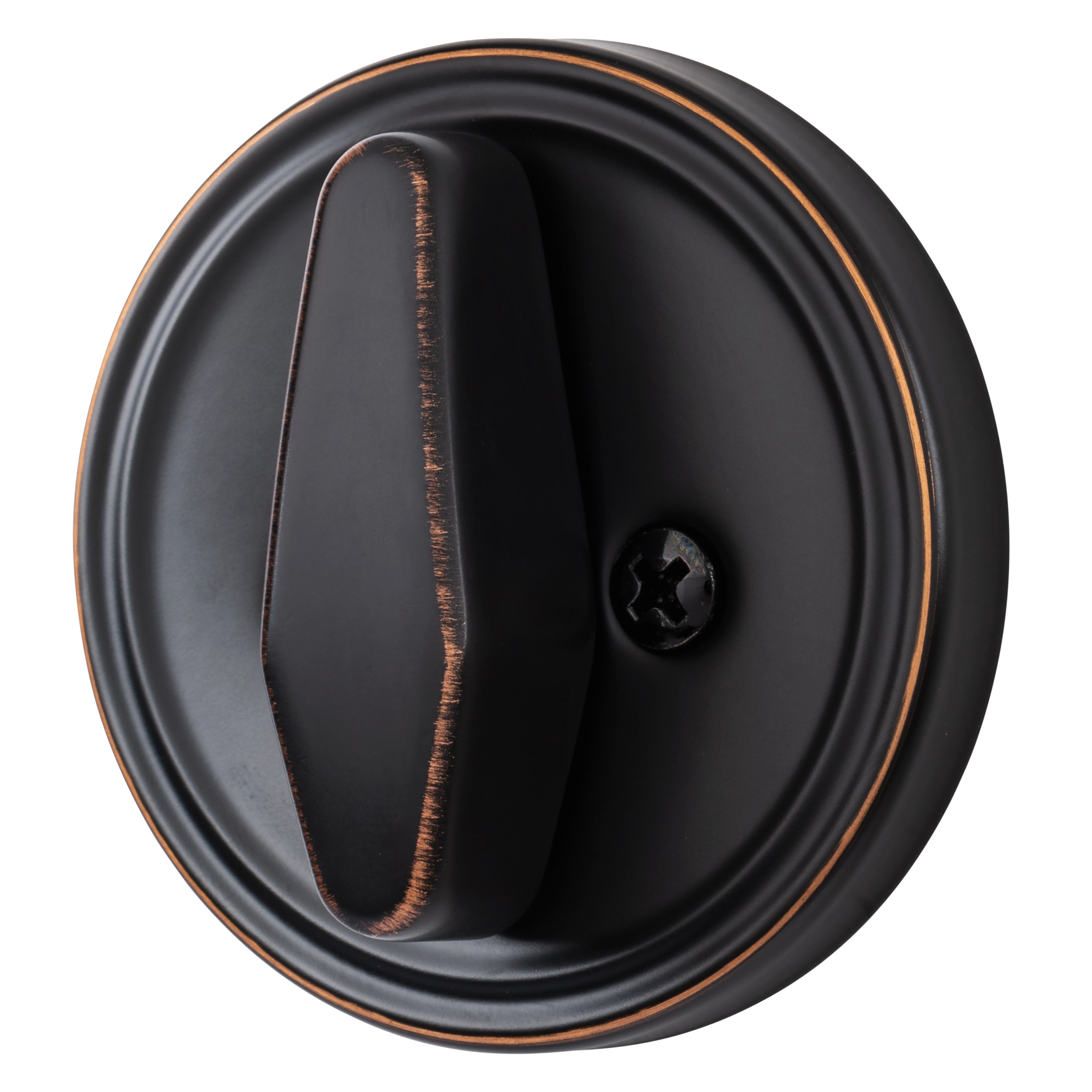

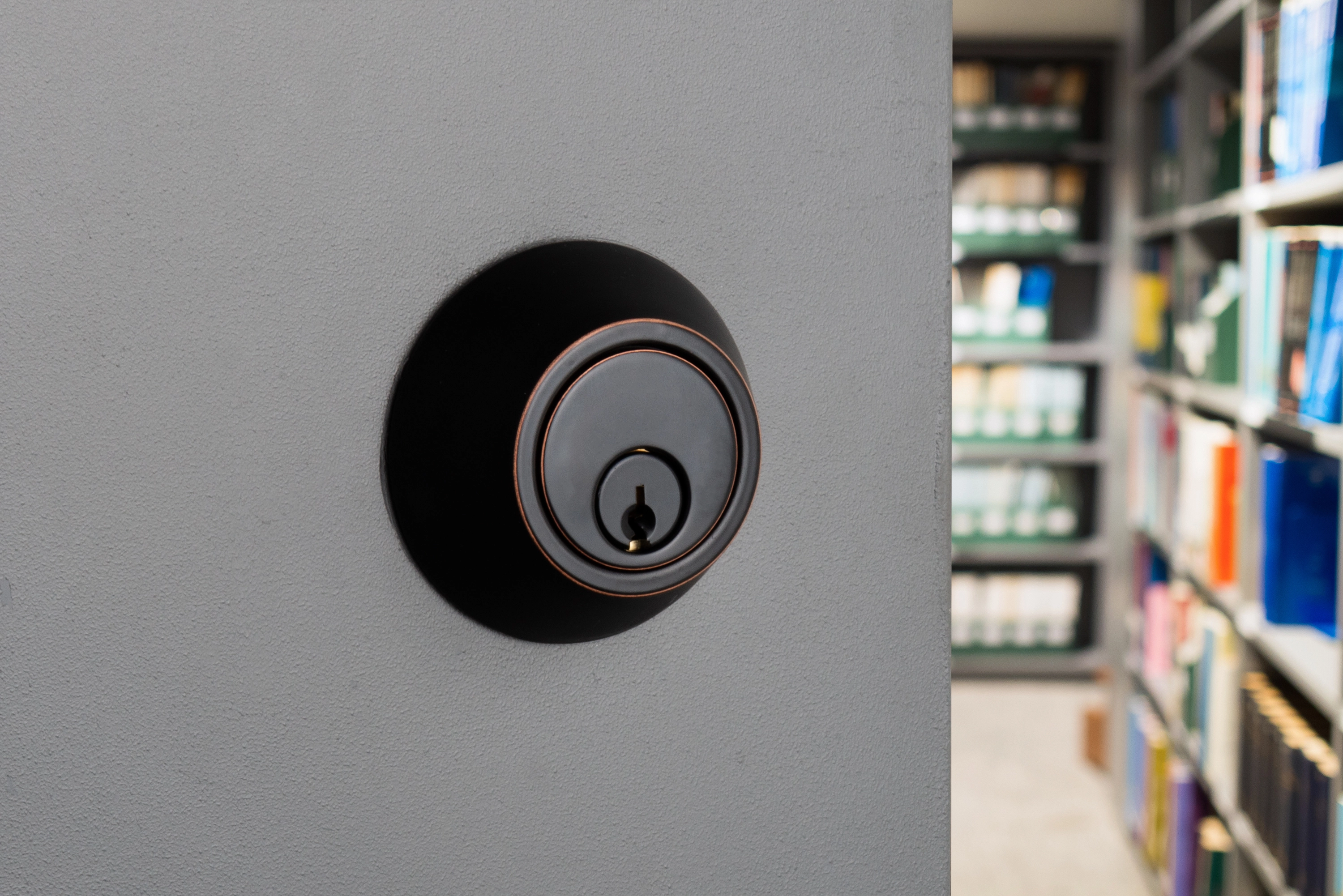

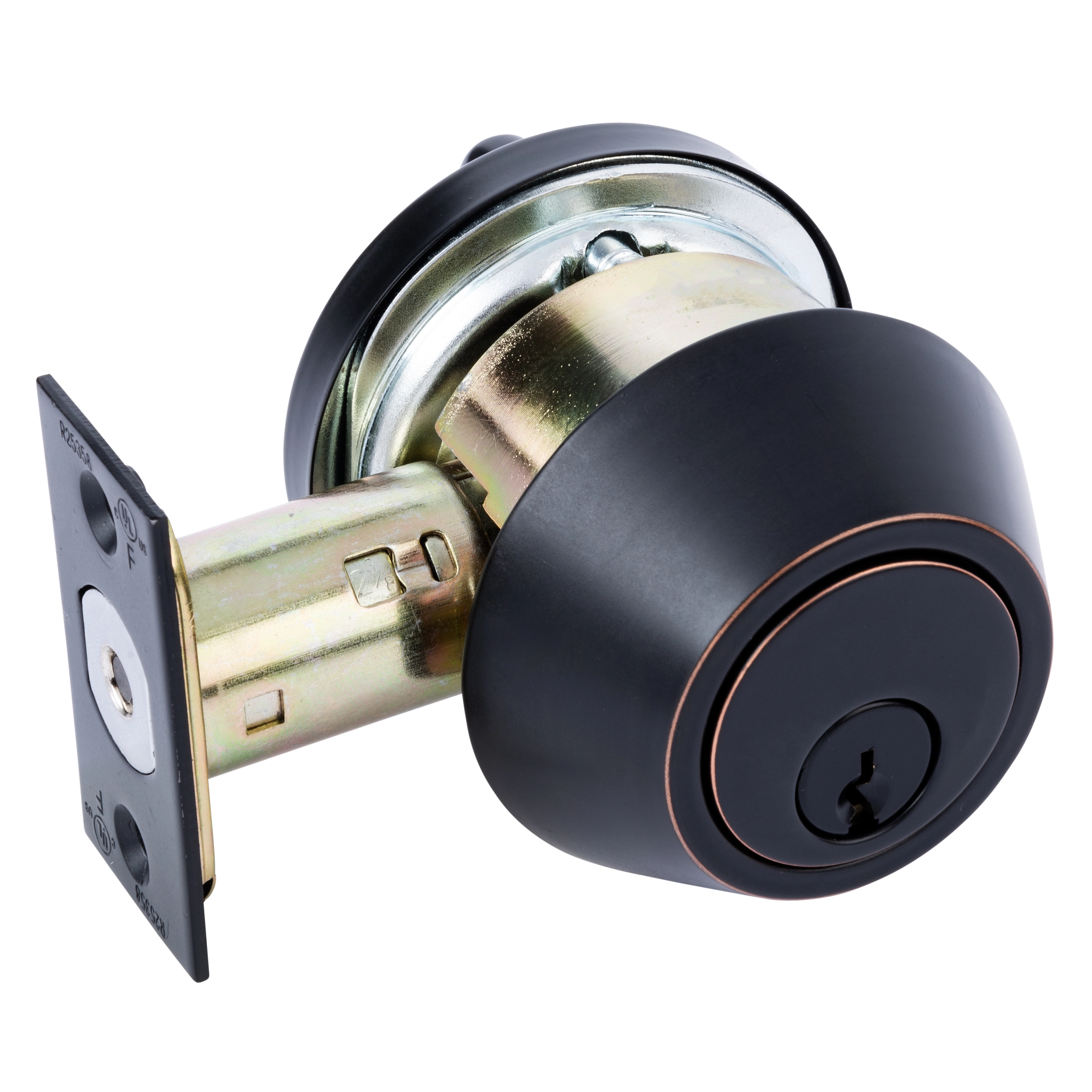

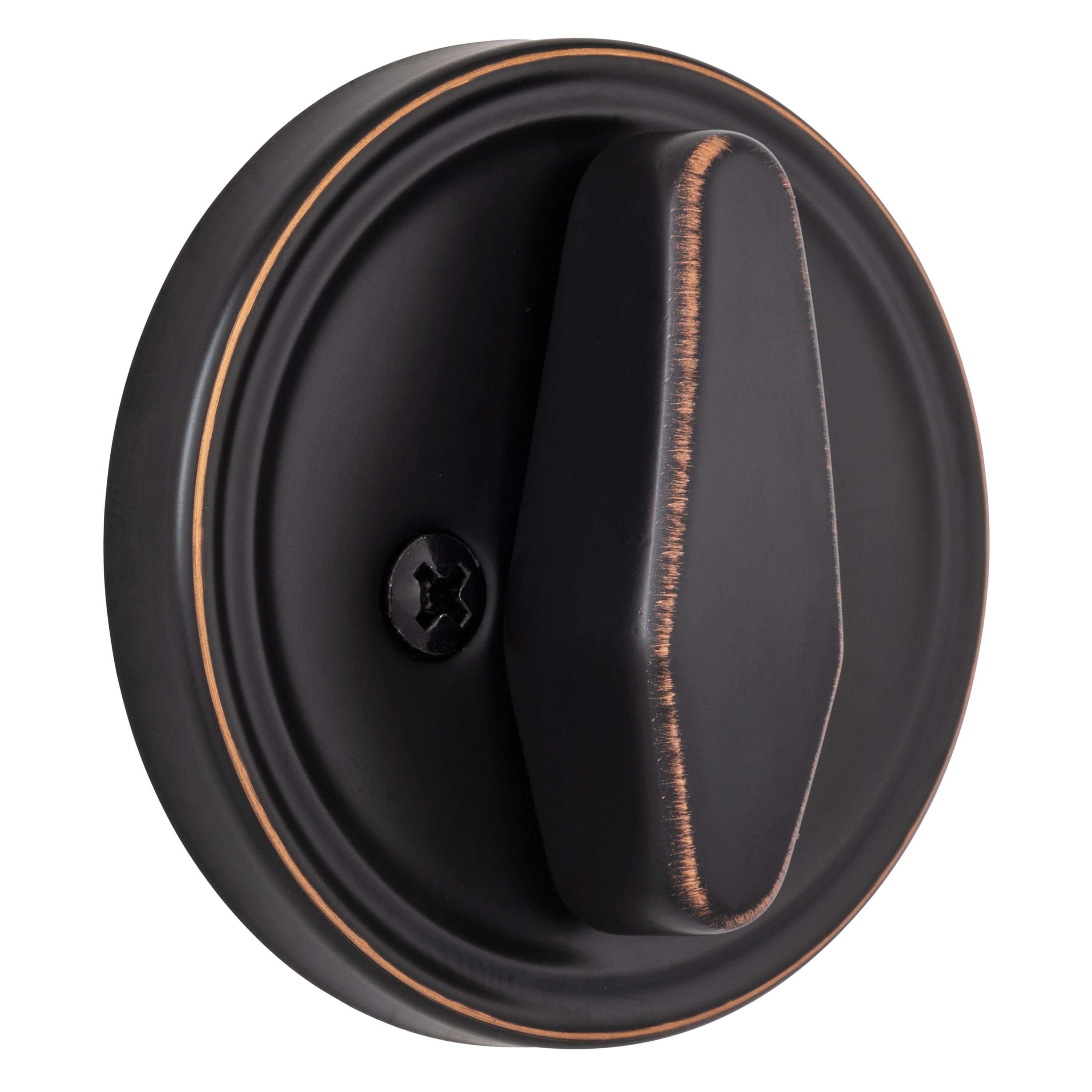

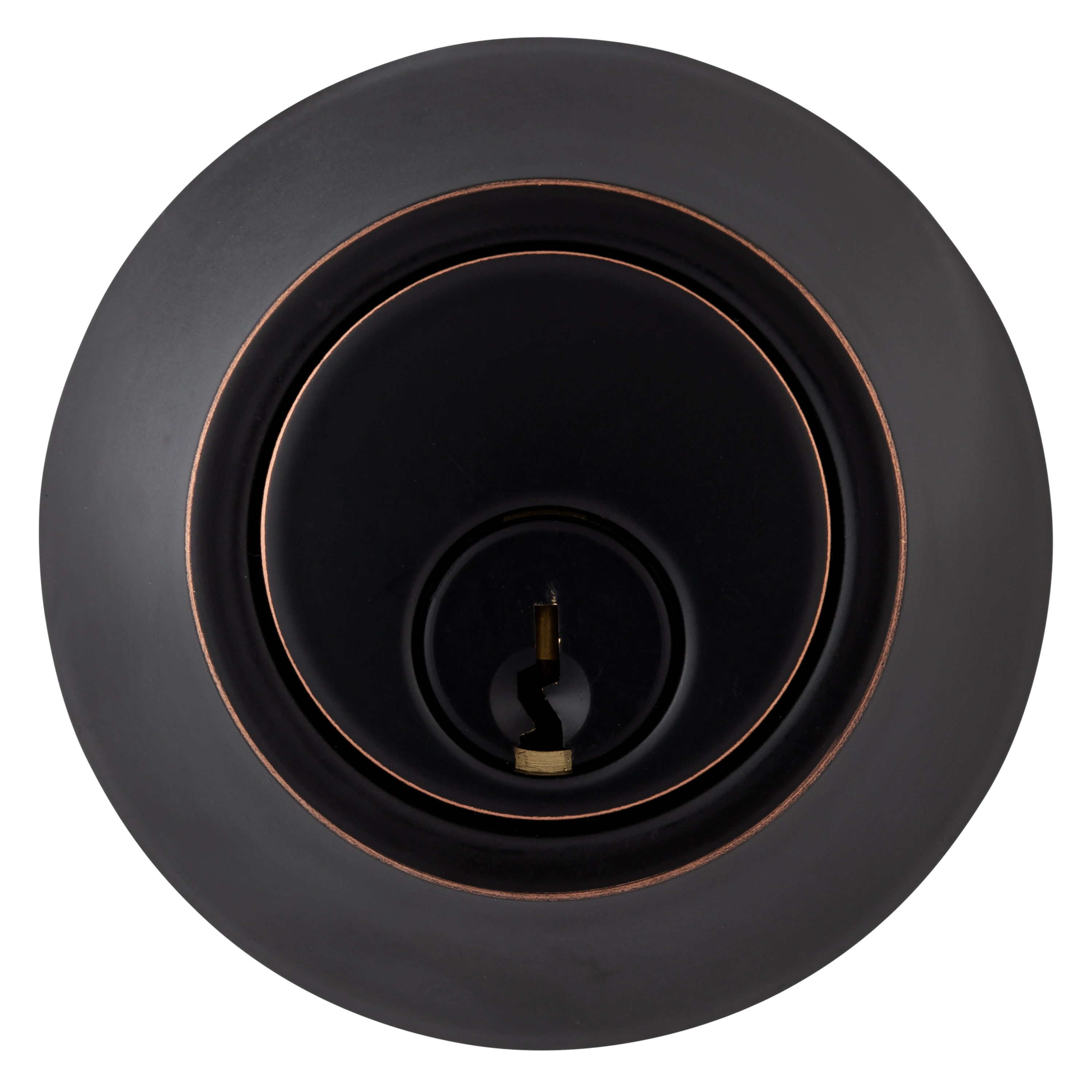

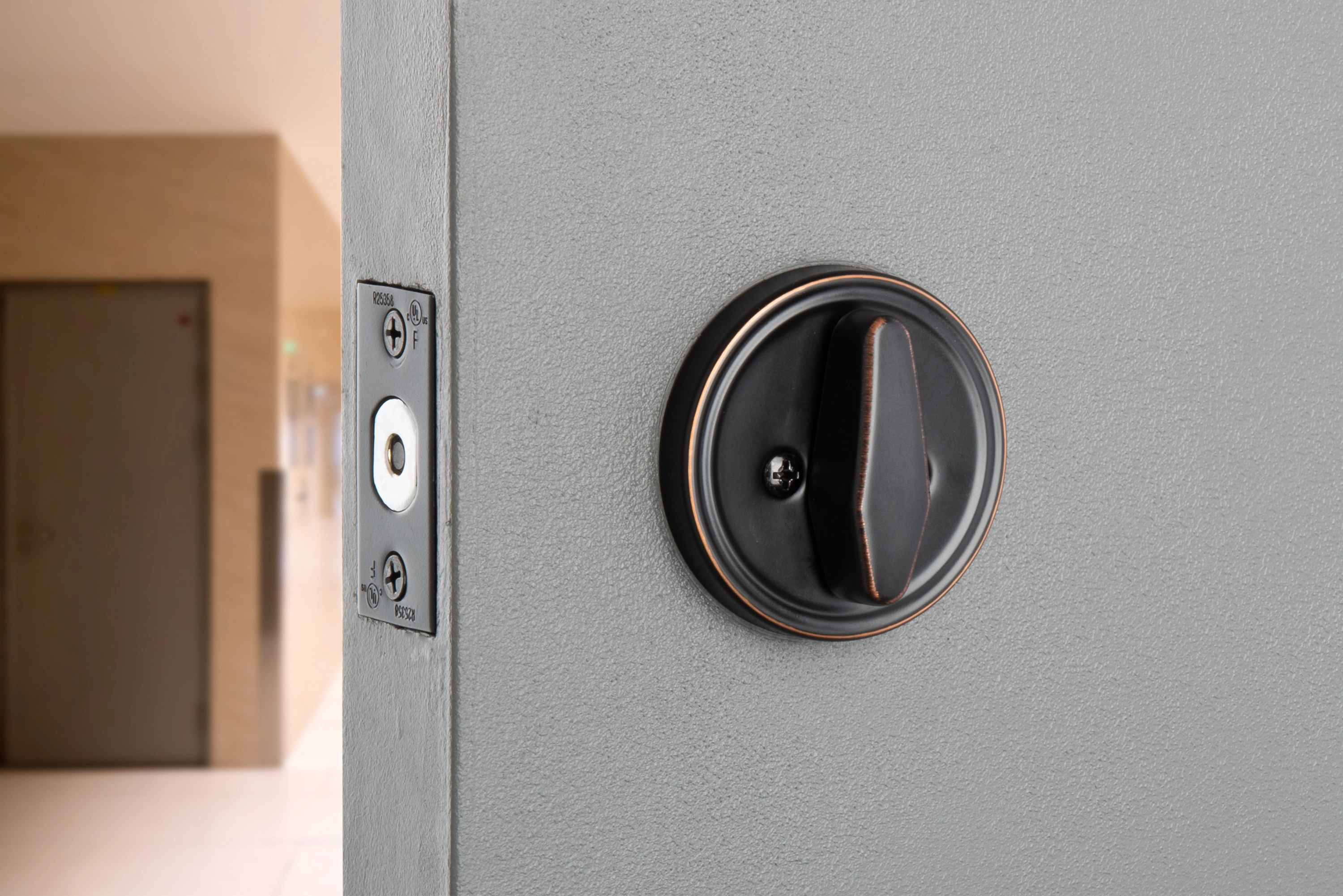

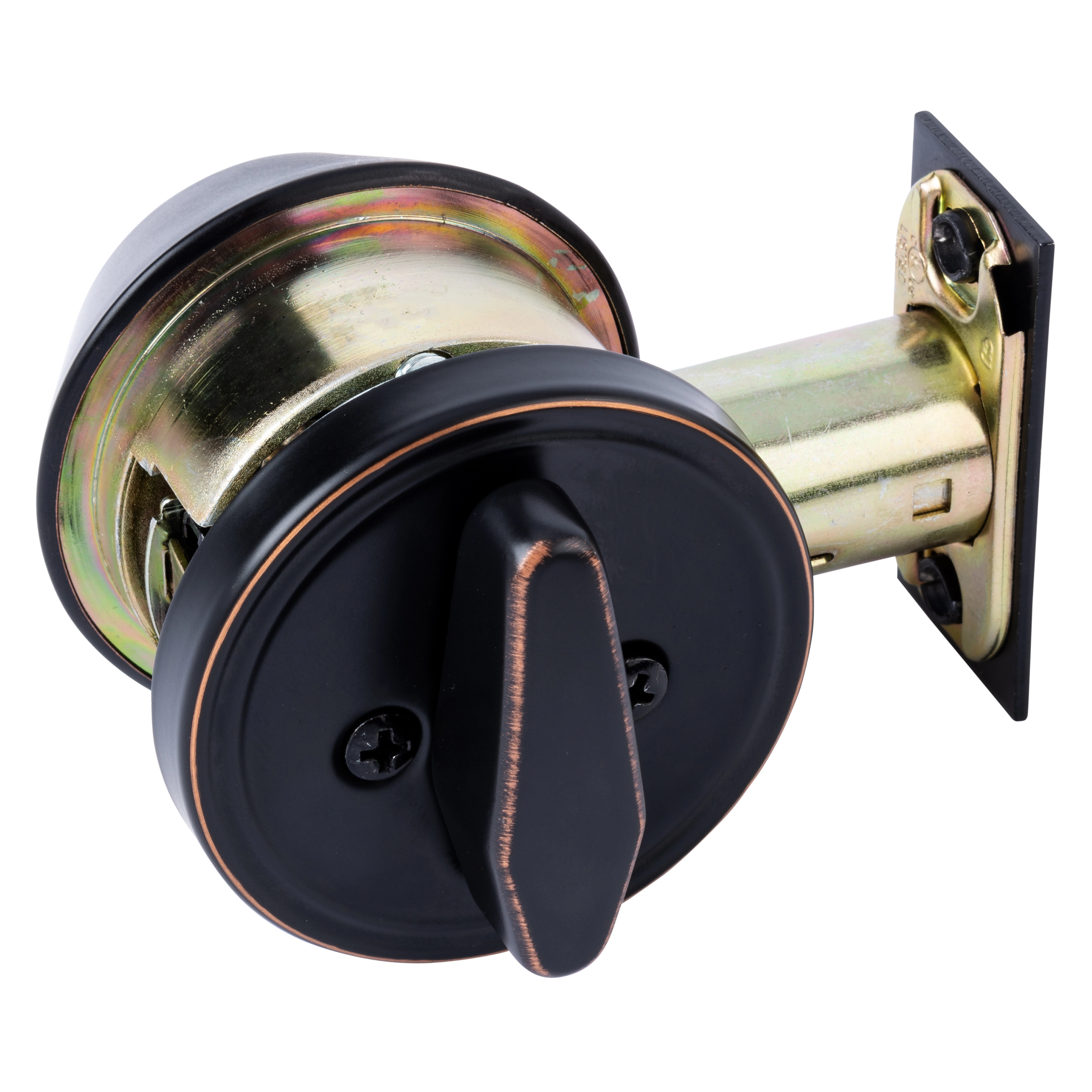

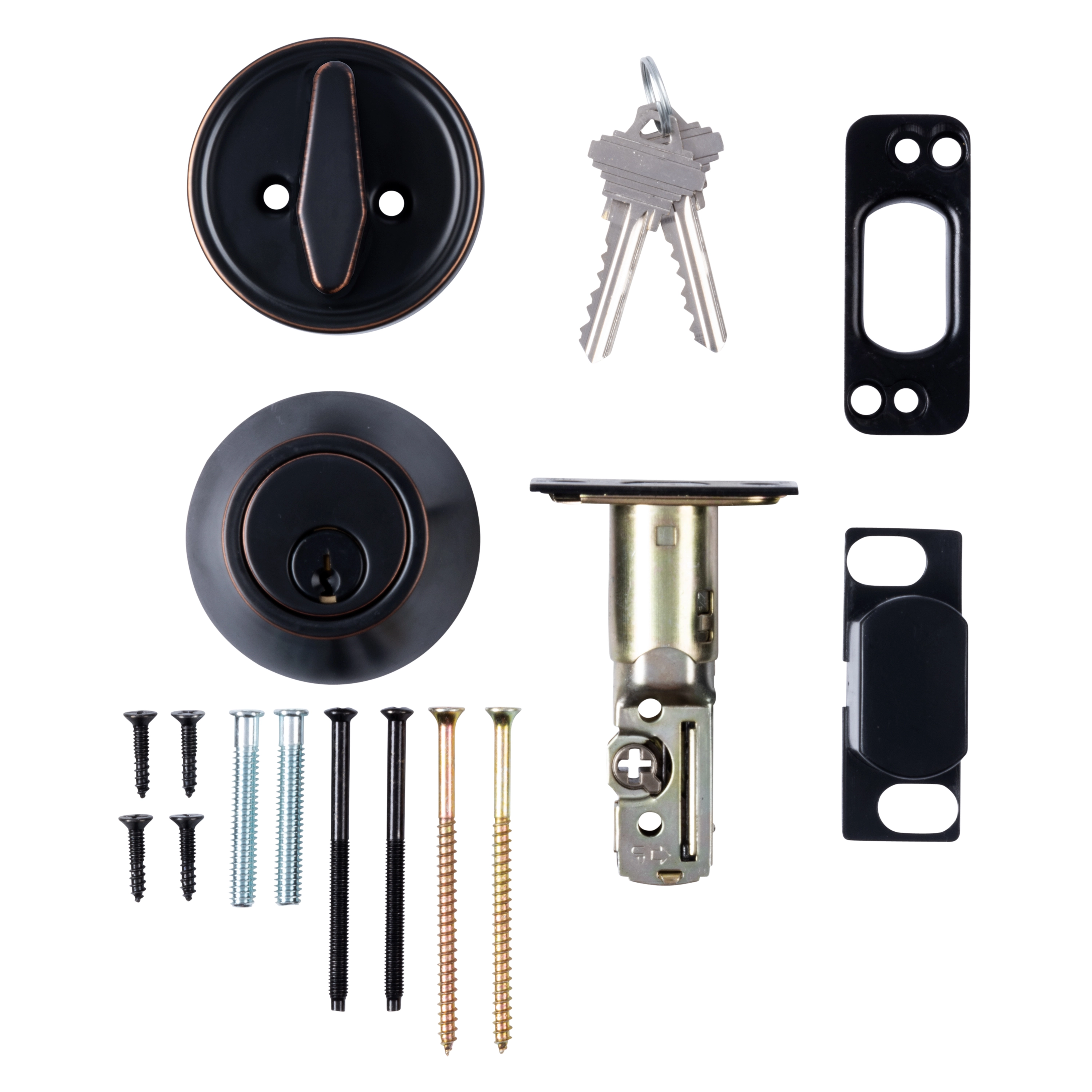

The Universal Hardware Single Cylinder Deadbolt lock is designed for interior or exterior doors where security is top of mind. The inside locks and unlocks the deadbolt using a thumbturn and the outside locks and unlocks with a key. The deadbolt is equipped with a 6-Pin SC4 brass cylinder, saw resistant bolt and metal collar to resist prying and wrenching from intruders. It's made to fit wood or metal doors 1-3/8" to 2" thick and has an adjustable latch that fits a 2-3/8" or 2-3/4" backset. The Single Cylinder Deadbolt is also ANSI Grade 1 and tested to exceed 250,000 cycles and has a 3 hour fire rating (UL Listed) for commercial use. A square corner strike plate, 2 keys, mounting hardware and installation instructions are included.

Videos

Industrial Duty Single Cylinder Deadbolt - Install Video V1

Universal Hardware

Additional Images

Drawings

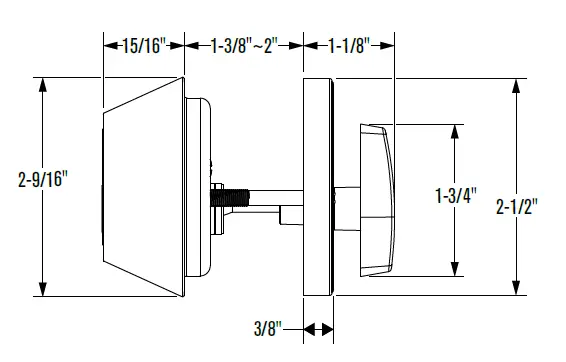

UH40066 Dimension Drawing

Files

Sell sheet icon

Instructions

DOWNLOAD
Sell sheet icon

Installation Guide 1

DOWNLOAD

Product Information

Technical Details

Color

Bronze

Fineline

Single Cylinder Deadbolt

Height

10 in

Width

6 in

Depth

3.13 in

Weight

2.07 lb

Mount Type

Surface Mount

Interior Door Compatibility

Left or right handed wood or metal doors 1-3/8" - 2" thick

Exterior Door Compatibility

Left or right handed wood or metal doors 1-3/8" - 2" thick

Mount Type

Surface Mount

Warranty

Full lifetime

Made In

Taiwan (TW)

Additional Information

Category

Deadbolts & Latches

Fineline

Single Cylinder Deadbolt

UPC

039208232593
