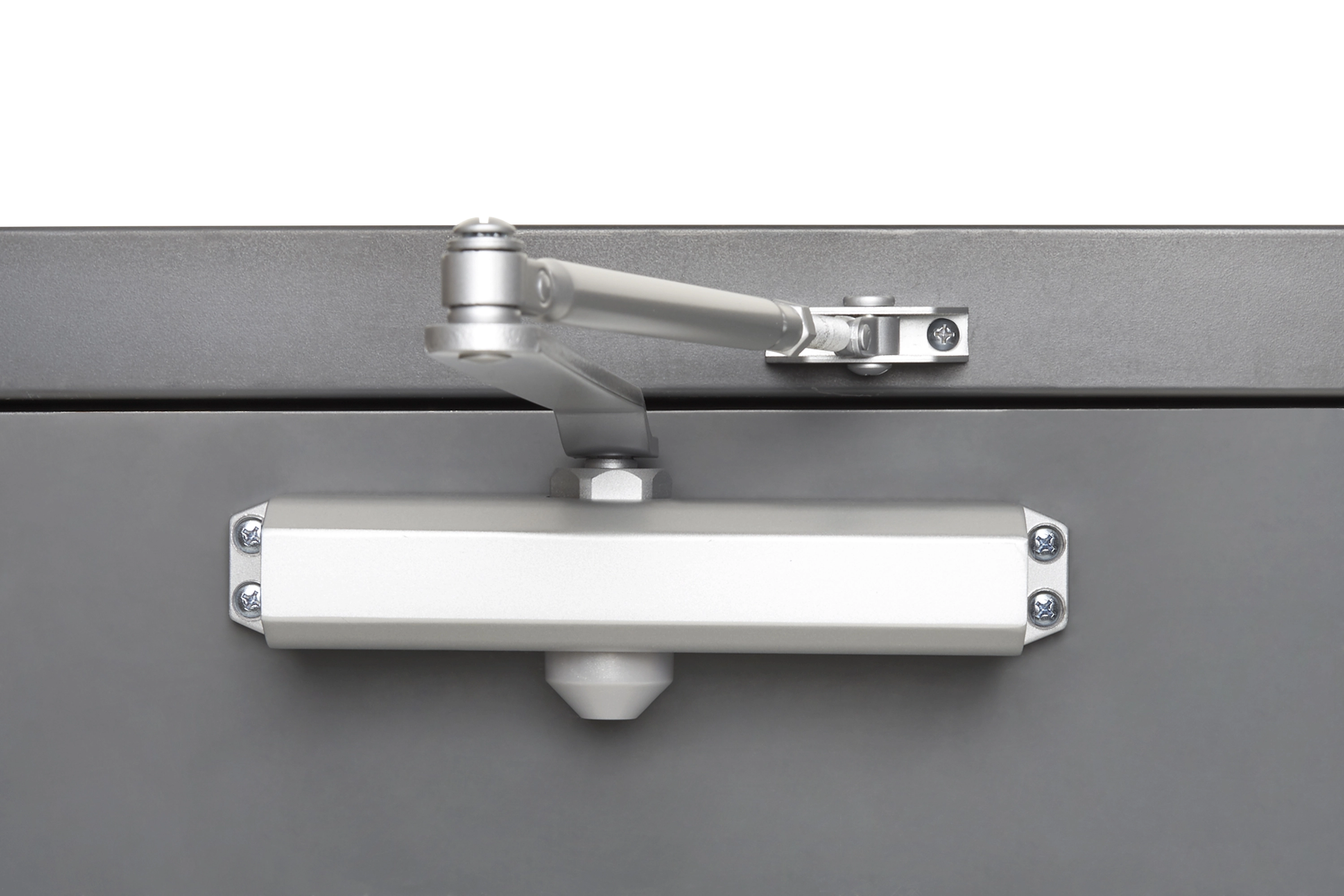

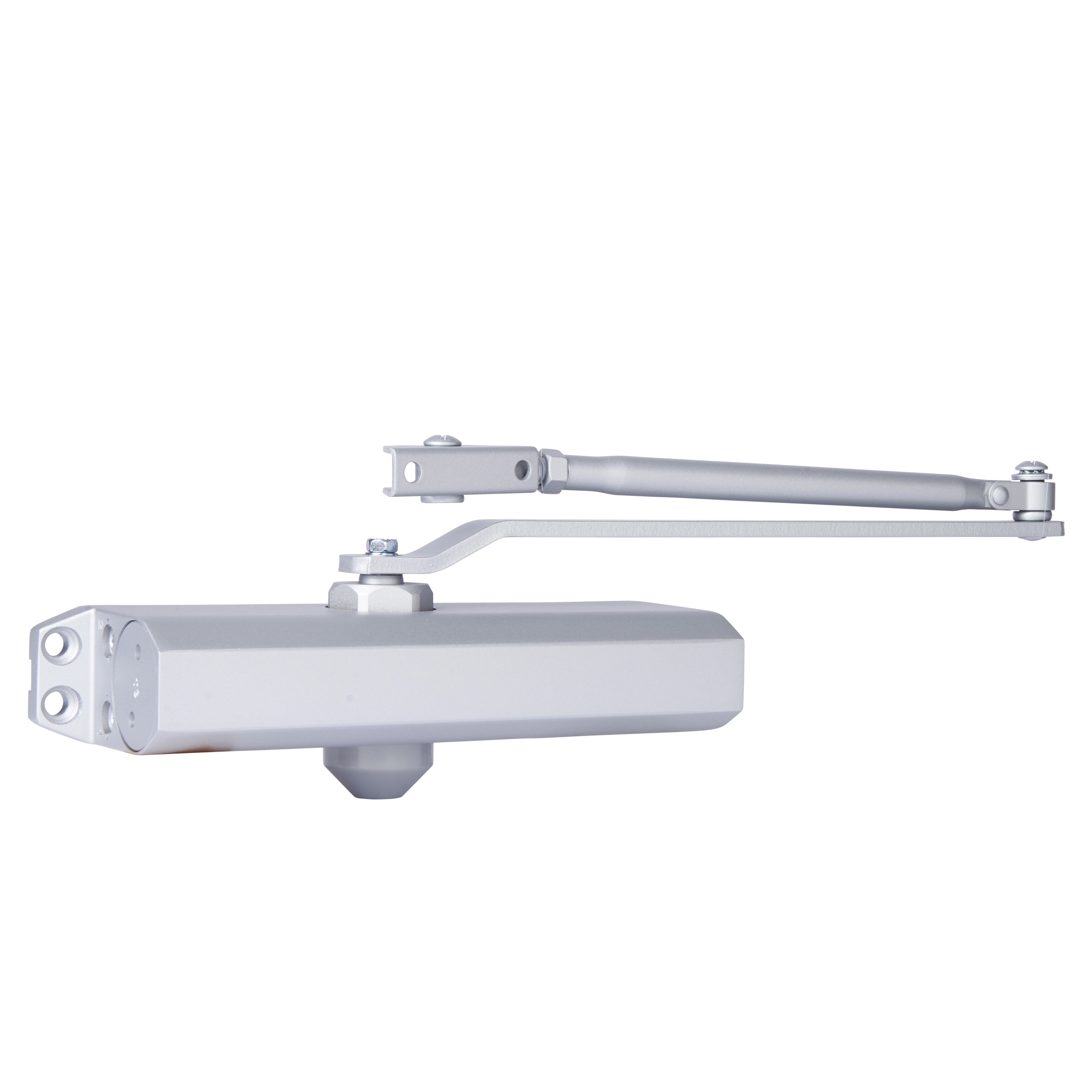

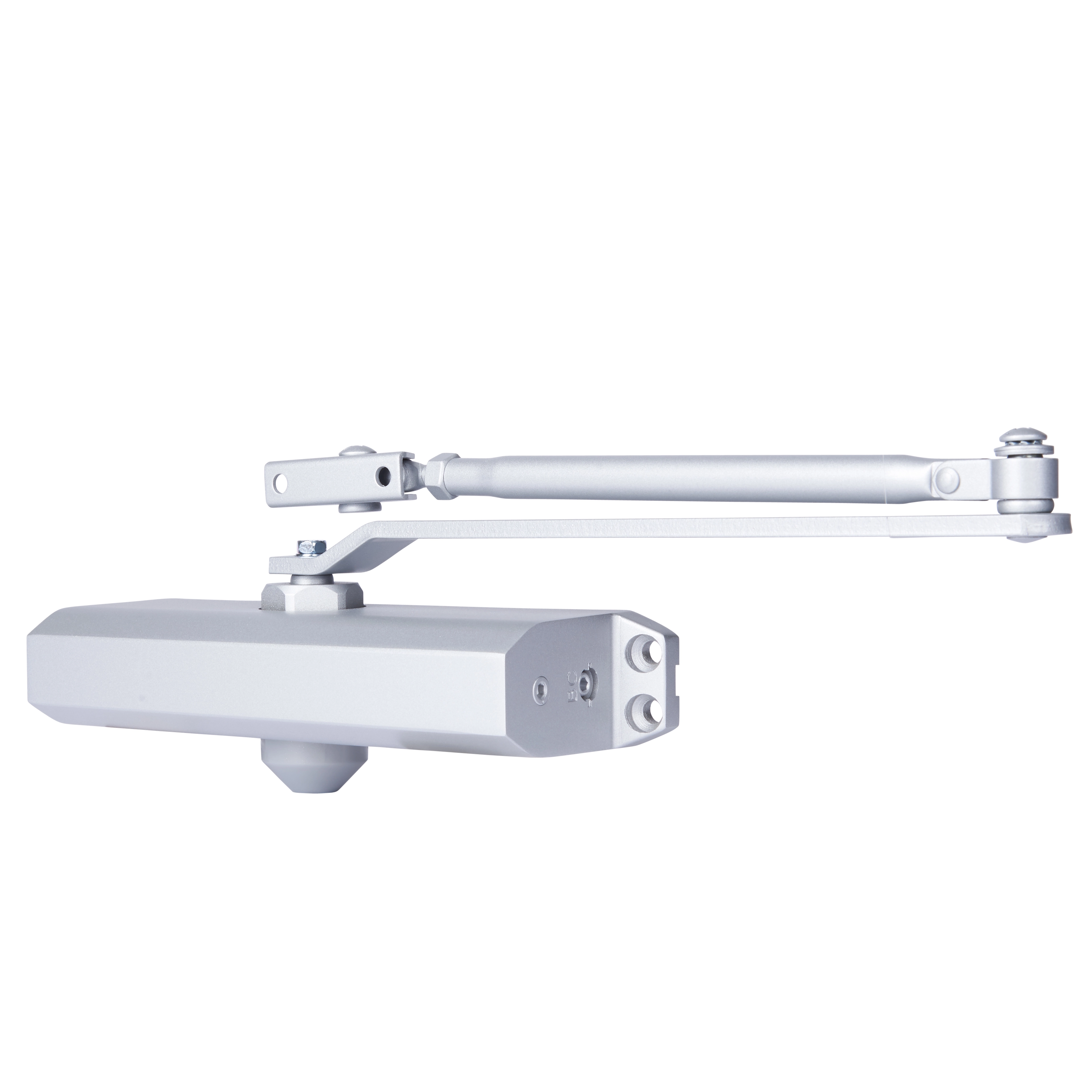

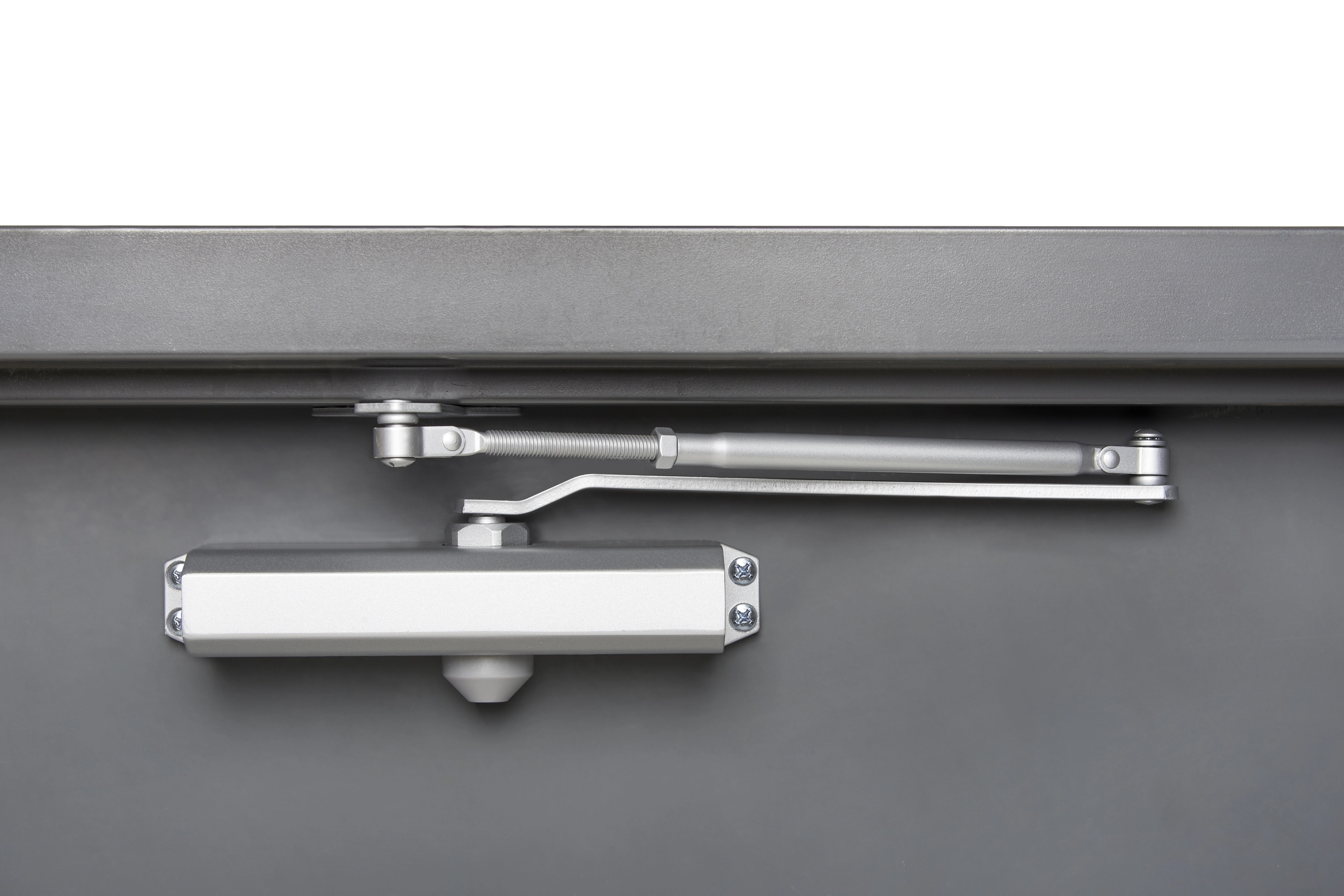

Heavy Duty Commercial Closer
SKU UH4031
- Features - This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety.
- Measurements - For exterior doors up to 200 lbs. and 42” wide and interior doors up to 200 lbs. and 54” wide.
- Specifications - This closer meets ANSI Grade 1 requirements, is ADA compliant, and has a 180-degree opening range. Adjustable spring tension powers this closer from a Size 1 to a Size 5, allowing for adjustment for light-very heavy applications.

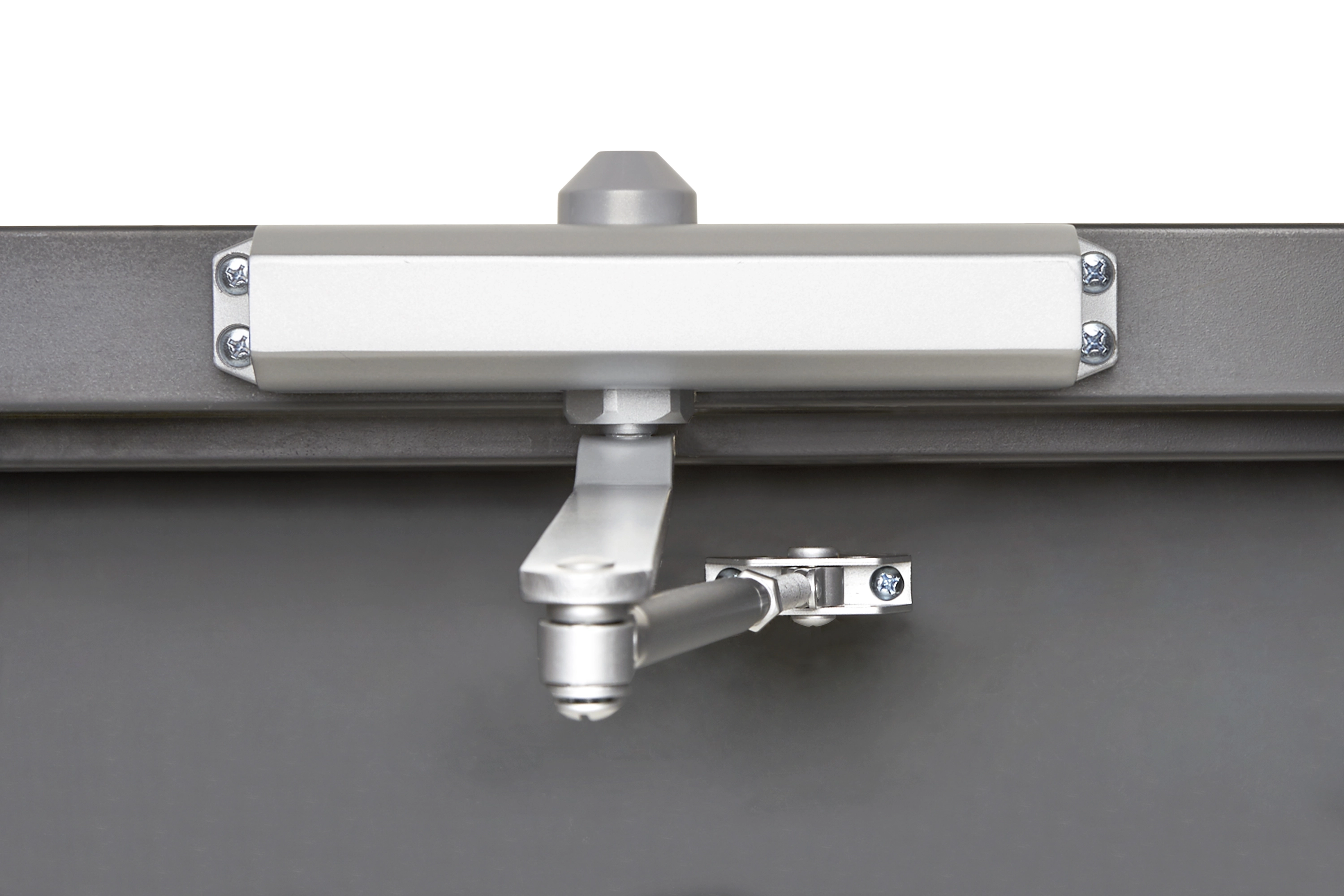

- Installation - Compatible with most commercial doors, and can be utilized in standard, top jamb and parallel mounting applications.
- Universal Hardware is the pro's choice for commercial door hardware and flat goods.
Buy Online:
Color: Aluminum
Share this:
Product Description
This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety. For exterior doors up to 42” and interior doors up to 54”. This closer meets ANSI Grade 1 requirements, is ADA compliant, and has a 180-degree opening range. Adjustable spring tension powers this closer from a Size 1 to a Size 5, allowing for power adjustment for light to very heavy applications. Compatible with most commercial doors, and can be utilized in standard, top jamb and parallel mounting applications. Universal Hardware is the pro's choice for commercial door hardware and flat goods.
Videos
Universal Hardware UH4031/UH4032/UH4033 Heavy Duty Door Closer Parallel Mount Install Instructions
Universal Hardware UH4031/UH4032/UH4033 Heavy Duty Door Closer Standard Mount Install Instructions
Universal Hardware UH4031/UH4032/UH4033 Heavy Duty Door Closer Top Jamb Installation Instructions

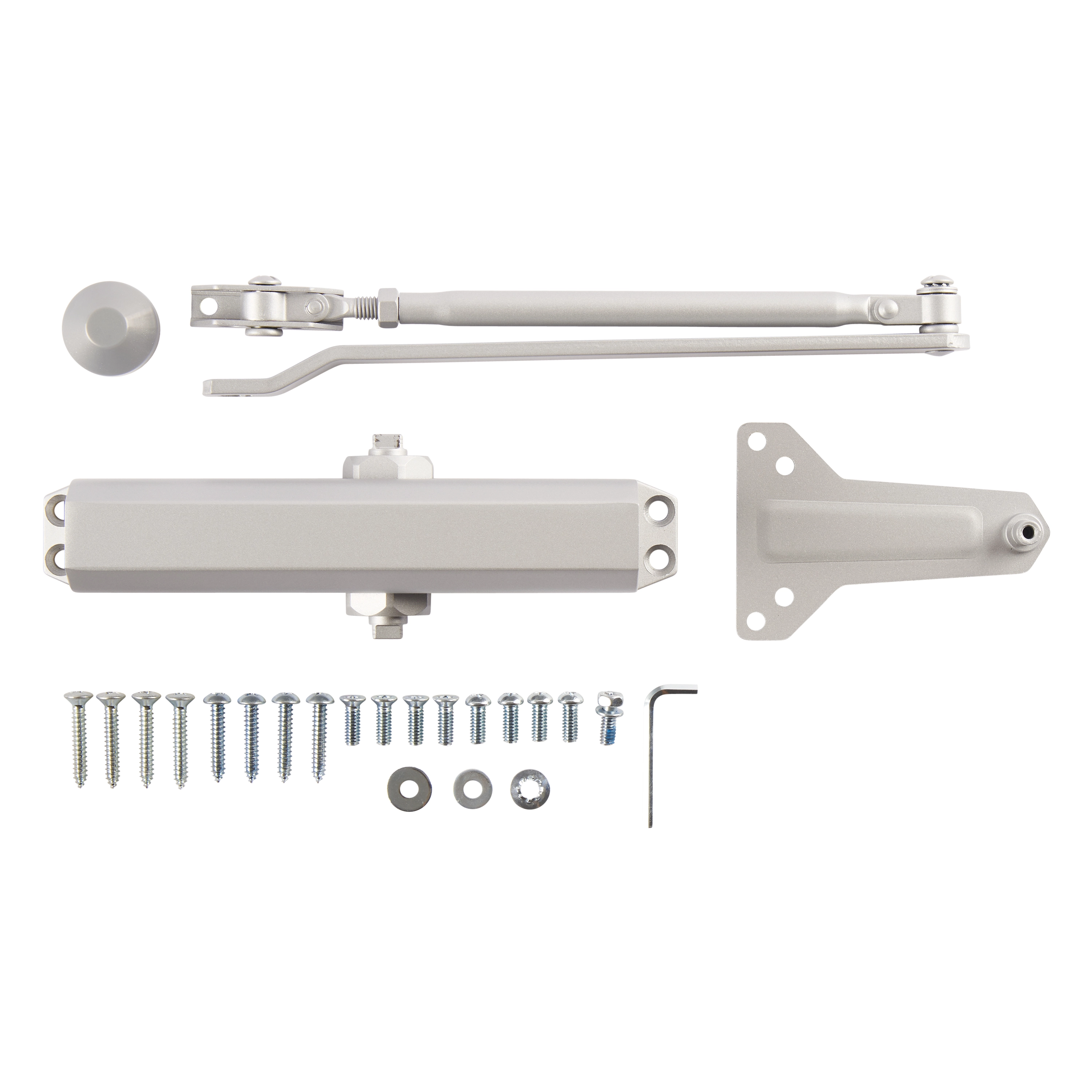

Additional Images

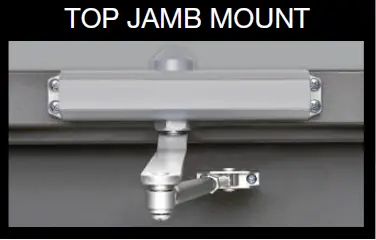

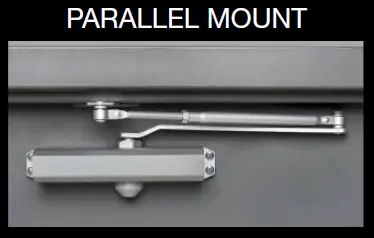

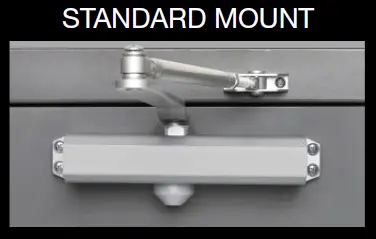

Mounting Configurations

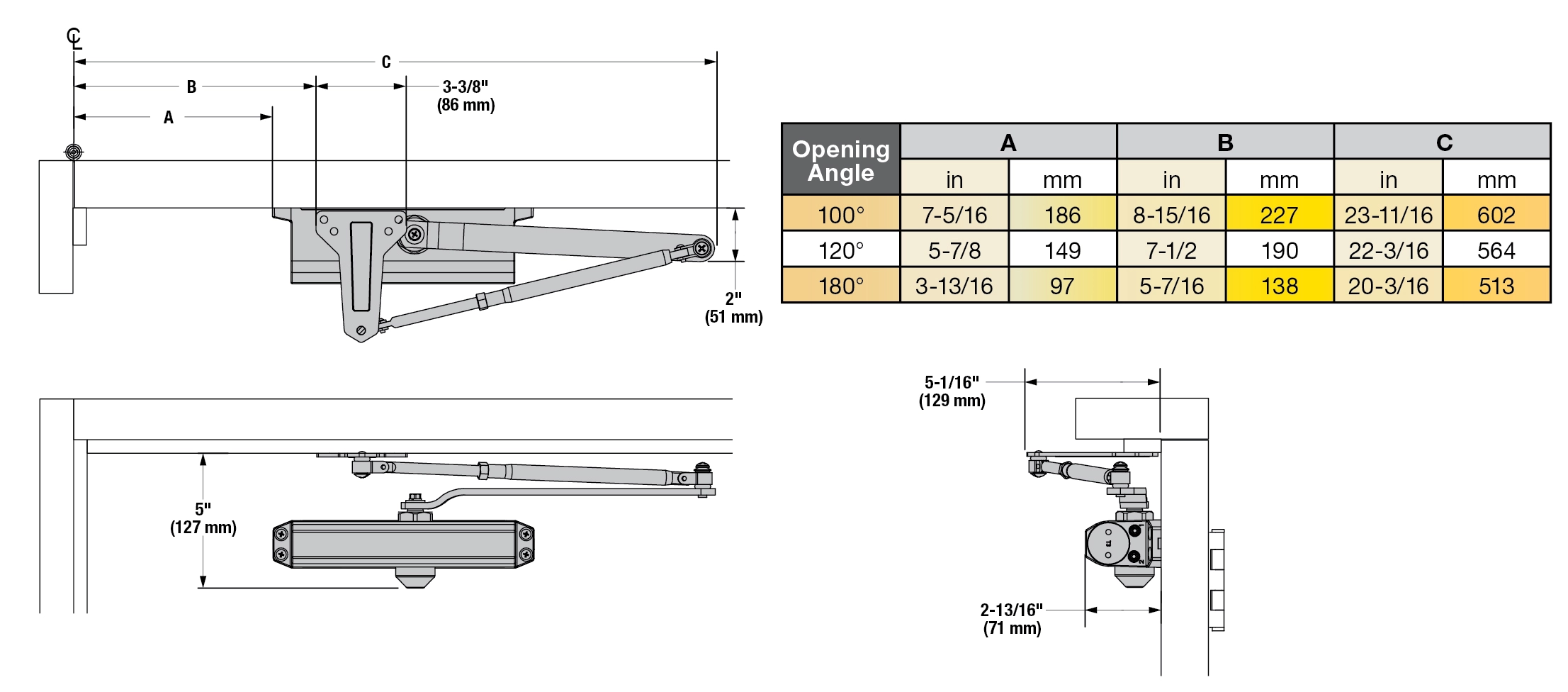

Drawings
Product Information
Technical Details
Color
Aluminum
Fineline
Commercial Closer
Height
3.63 in
Width
12.75 in
Depth
4.25 in
Weight
6.27 lb
Mount Type
Standard, Top Jamb, Parallel
Interior Door Compatibility
Left or right hinged doors up to 54" wide
Exterior Door Compatibility
Left or right hinged doors up to 42" wide
Closer Rating
Adjustable Size 1-5
OpeningRange
180 Degrees
Mount Type
Standard, Top Jamb, Parallel
Warranty
10 Year Limited Warranty
